Create a Visual Baseline Collection

This document shows you how to create a visual baseline collection.


A baseline image is a reference image initially configured to compare with other image output from visual testing.

Create a Visual Baseline Collection

  1. Go to Assets > Visual Baseline Collections. The page lists all your collections.

  2. Click the Create button at the upper right corner. The Create Baseline Collection window appears.

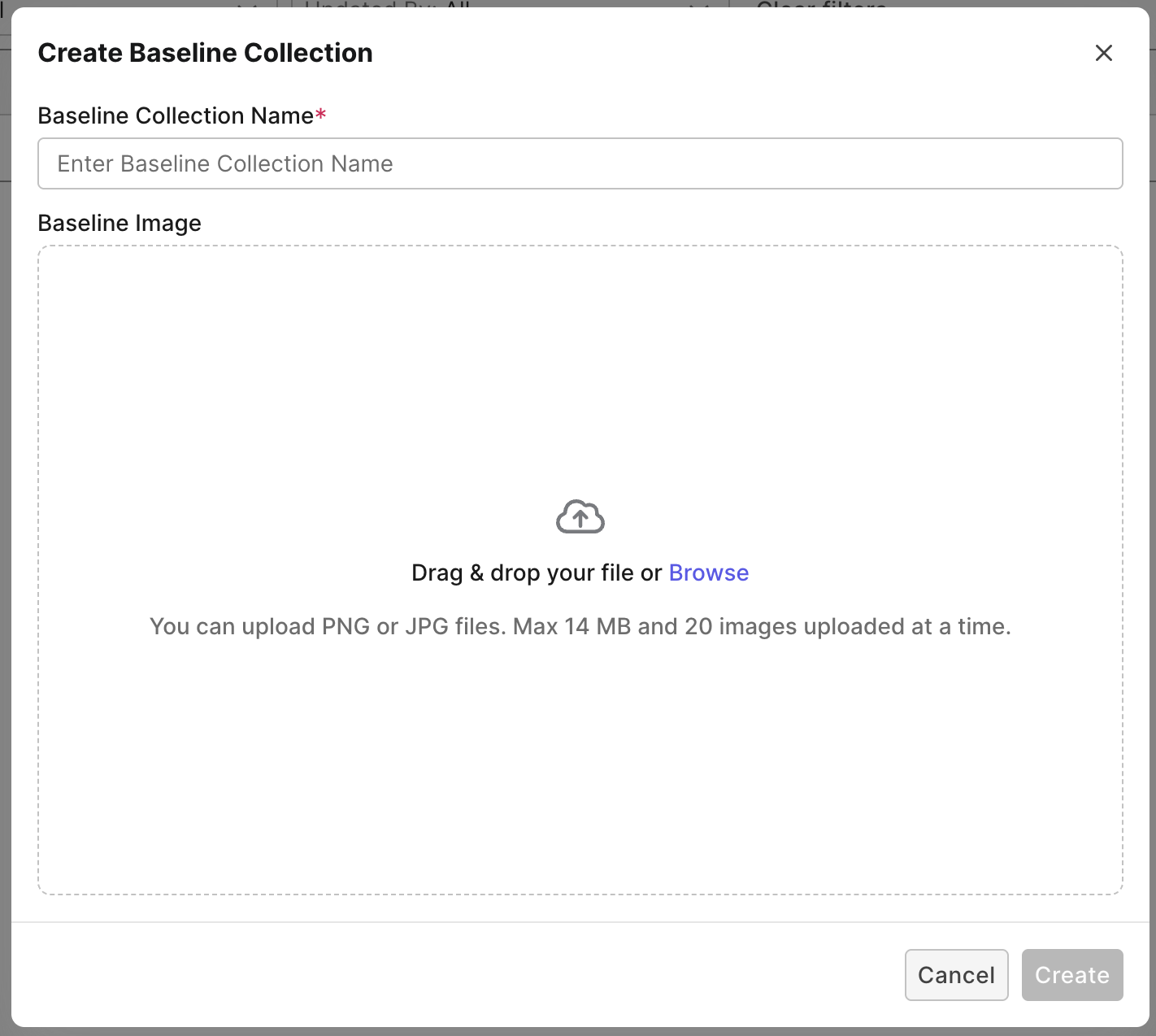

Create Visual Baseline Collection
  1. Input a name for your collection.

  2. Upload a Baseline Image.

  3. Click Create.

Results

A notification confirms that you have successfully created a visual baseline collection.


Upload a Baseline Image

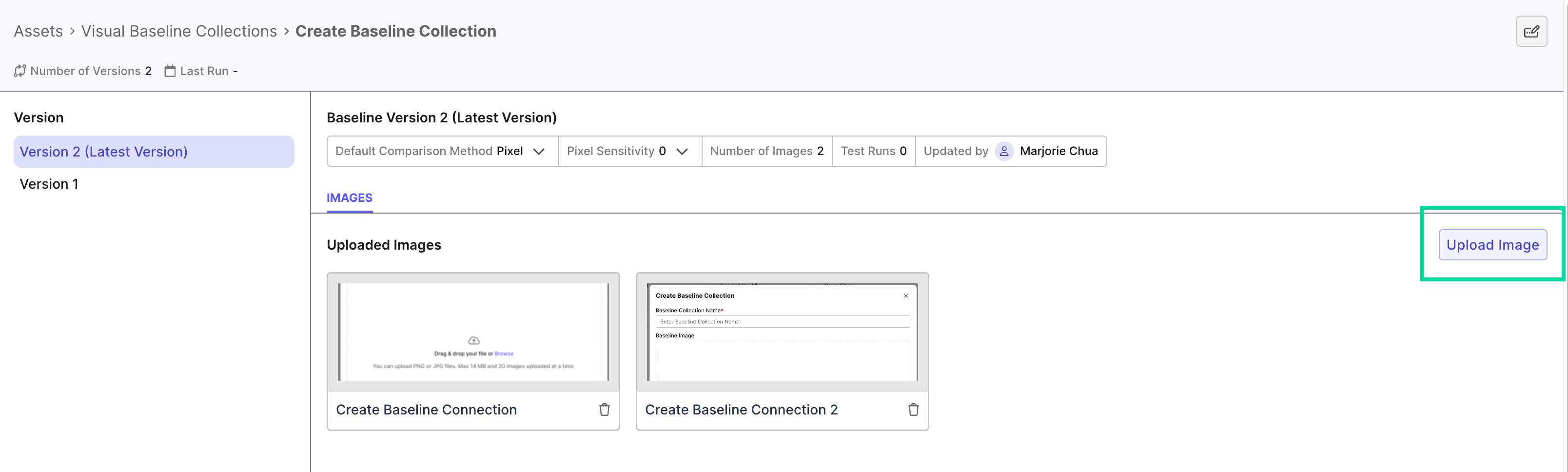

  1. Go to Assets > Visual Baseline Collections and click on the collection you want to add to.

  2. Click Upload Image at the upper right corner.


Upload Image
  1. Select the image you want to upload.
note
  • Uploading an image will increase one version of the collection.
  1. Click Upload.

Results

A notification confirms that you have successfully uploaded a baseline image.
