Monitor Automated Tests

This document explains how you can use TestOps to manage scheduled test runs, re-configure scheduled tests, and gain more insight about the test run results.

Manage and modify scheduled automated tests

After you schedule automated runs, use the Manage Automated Schedule screen to monitor and update and manage them in bulk (deactivate, delete,…).

1. Click the Manage Automated Schedule button to edit tests.

2. In this view, you can deactivate/activate, or delete the run. Editing in bulk is supported.

3. To view and adjust details of a scheduled test run, select the test run. You'll see a test run details page with three tabs:

   • The Test Runs tab is opened by default, showing past runs of this test and their separate results.

   • The Overview tab displays details of the test's past performance.

   • The Configurations tab shows you how this test was configured for the recent runs.

4. In here, you can click Edit to re-configure profile, environment, schedule, and some additional settings for this test to execute in the next run.

Assess Automated Tests

For all automated tests, TestOps offers a high-level view and granular view of test results.

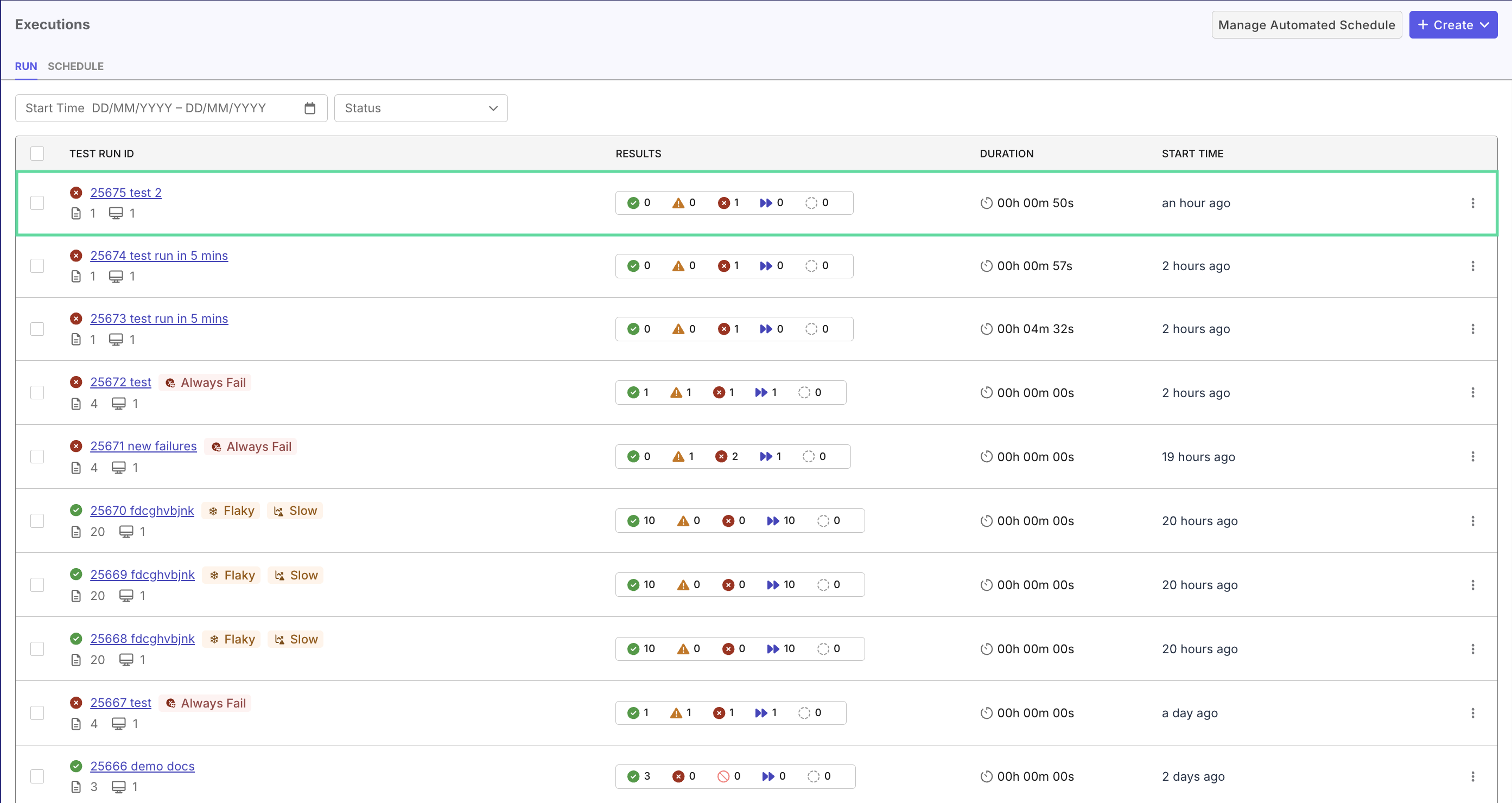

In Executions > Run, you can see a list of tests and their details like results (counts of test results by statuses), duration, start time, and smart tags (if any) for each test run:

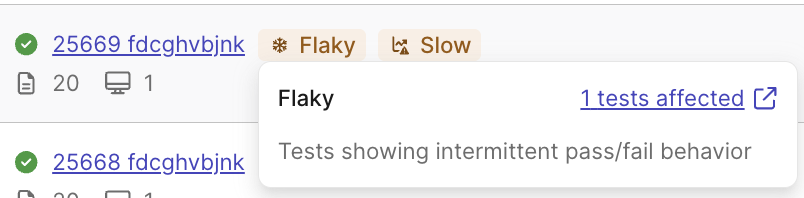

Hovering on each smart tag displays a summary of troubling test cases inside:

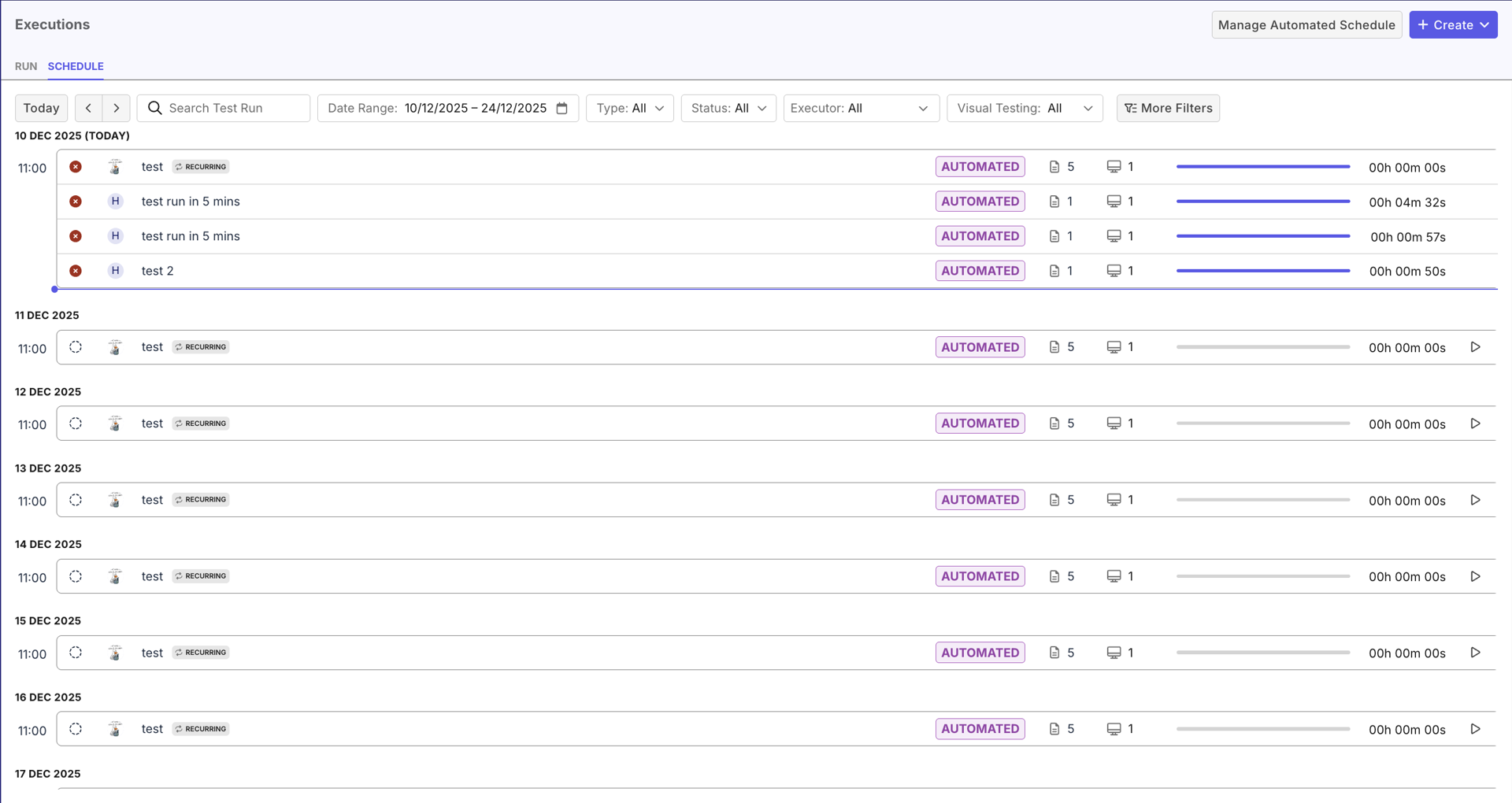

The Schedule tab displays scheduled tests, with sort/filters functions and an execute button next to each test so you can execute it immediately.

View Test Run details

In Executions, click on a test run you want to assess to view its details. This view displays differently, depending on whether the test has been executed or not.

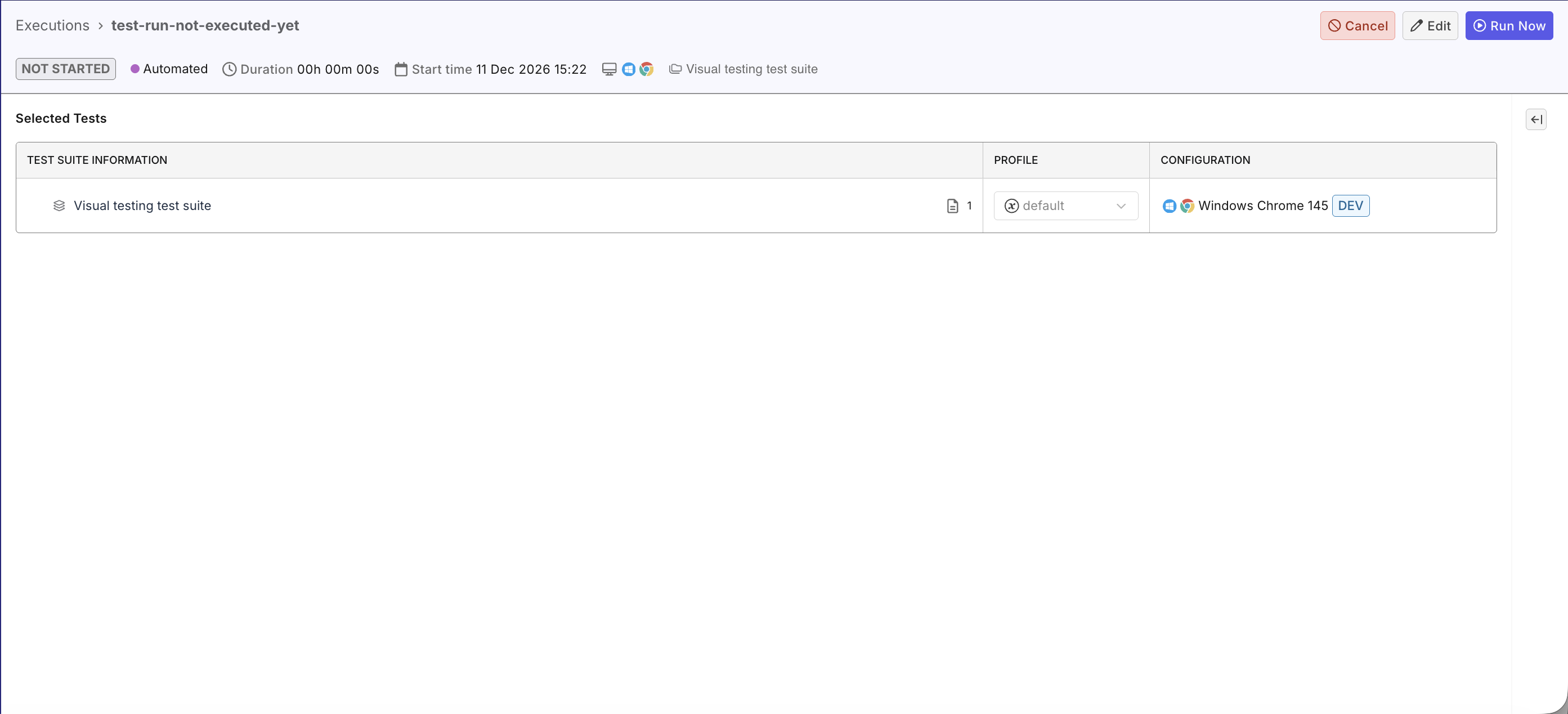

If the test is scheduled and never ran before, the view displays what test suites are selected, and allows you to Edit details, Run Now, or Cancel the run schedule. These actions are also available in the Manage Automated Schedule > Scheduled Test view above.

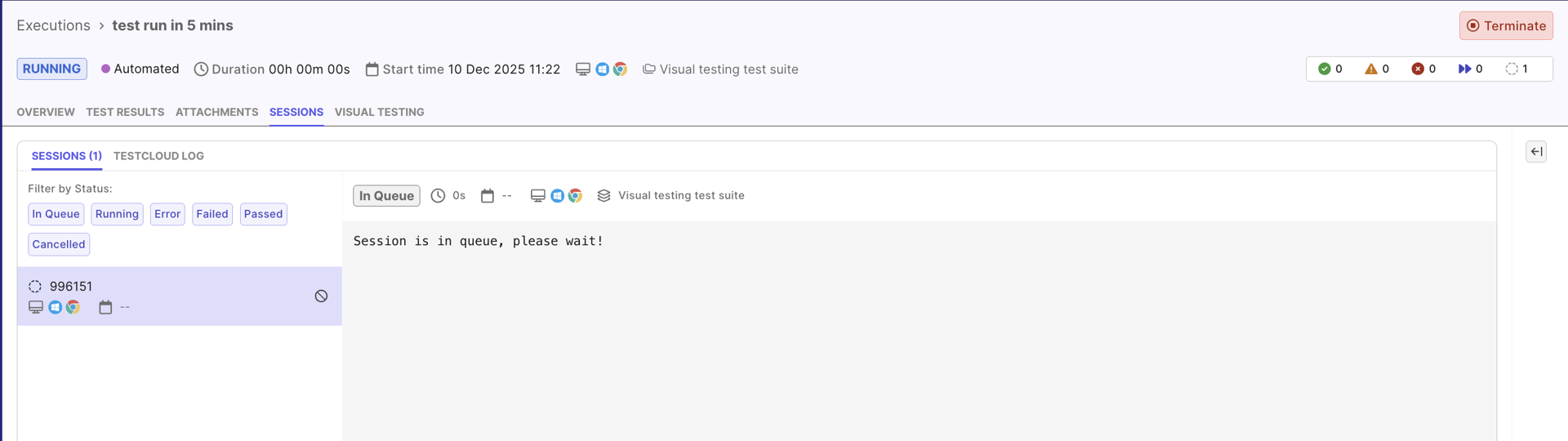

While the test is running, the view changes to display test run data. As this is the test's first run, most tabs are empty, except for the Sessions tab which displays real-time execution log as the test executes, for monitoring purposes.

Once the test completes, data are gathered to display in other tabs, to help you assess the test in its whole execution history:

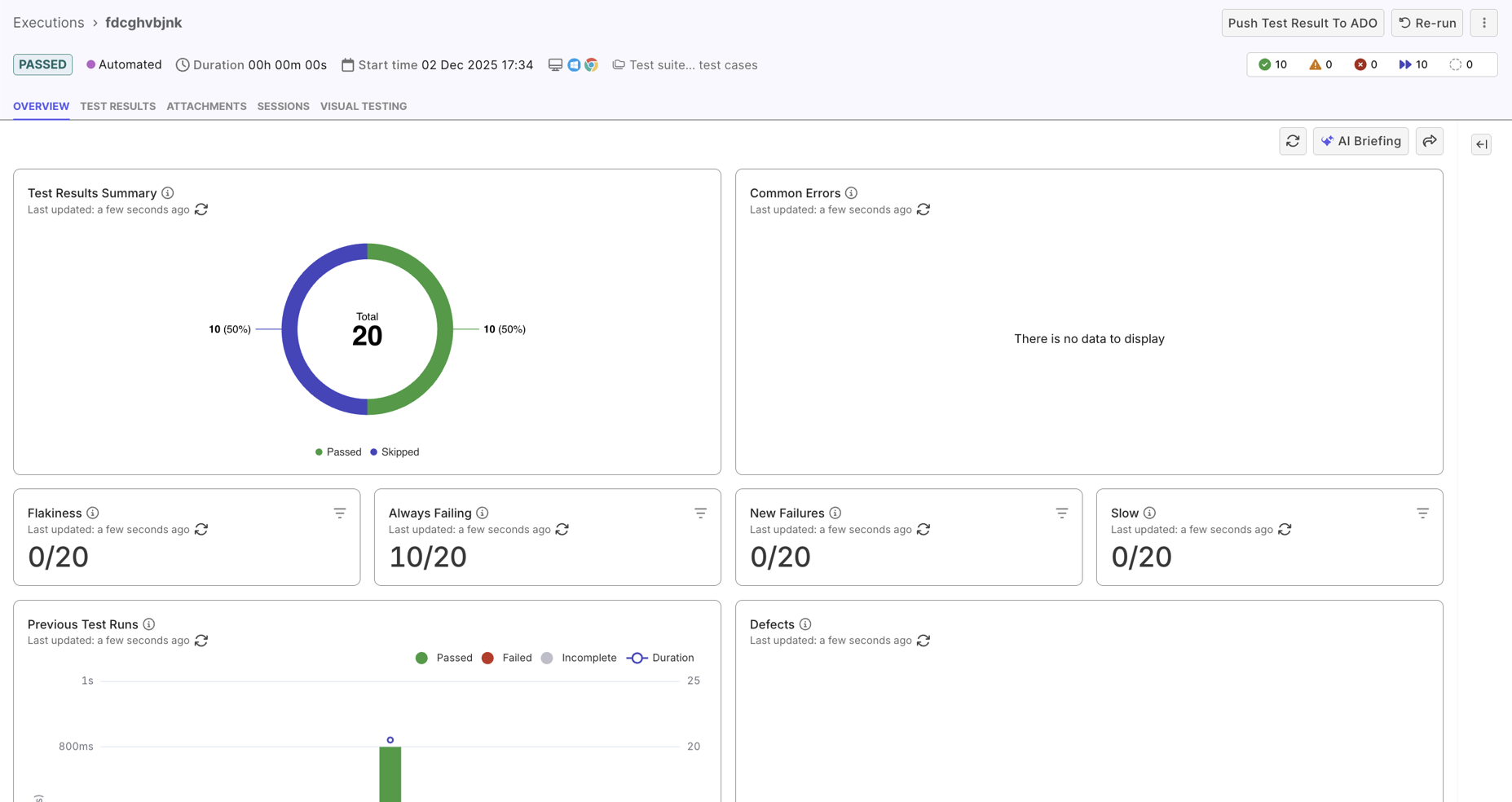

• Overview tab has charts to rate test suite’s performance over the runs:

  • Test Results Summary: percentages of test result statuses like passed, failed, skipped, etc.

  • Common Errors: displaying common errors from failed tests. You can click each test to learn more.

  • Big numbers: Counts of smart tags like flaky, always fail, new failure, and slow.

  • Previous Test Runs: Past test runs with statuses and durations.

  • Defects: List of defects linked to this test run. You can click each defect to view its full details in the ALM.

  • Test Coverage by Configuration: Test execution coverage across operating systems and browsers.

  • Error Distribution by Failure Category: Details of test failures grouped by root cause category.

• Attachments tab has attachments such as reports for later viewing.

• Test Results tab has results of each test case in the test suites/test suite collections that this run contains. Each result can be view independently (see View Test Results details below).

• Visual Testing tab has information of the Visual Testing, if enabled.

note

• On each test run’s details page, TestOps includes only the data available up to the selected run. Any executions performed after that run are excluded, to maintain accurate and consistent analytics across all runs.
• If you switch to the Test Results tab while a Dynamic Test Suite (DTS) is running, the tab may appear empty. This is because a DTS contains queries to select test cases, and does not contain test case data. After the test run completes, execution data will be parsed, and you can view the results as usual.

View Test Result details

Use this view to quickly deep dive into each test case's log, and review execution issues.

1. In the Executions, select a test run to see the full Test Run Details page.

2. Select Test Results tab.

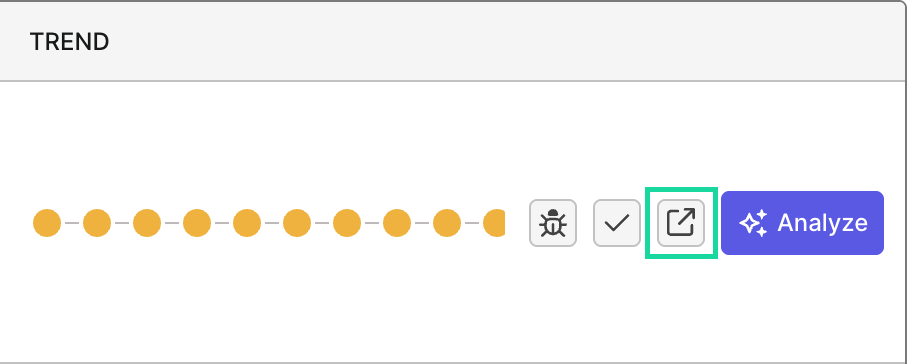

3. For each test case, select this button to view result of the current run.

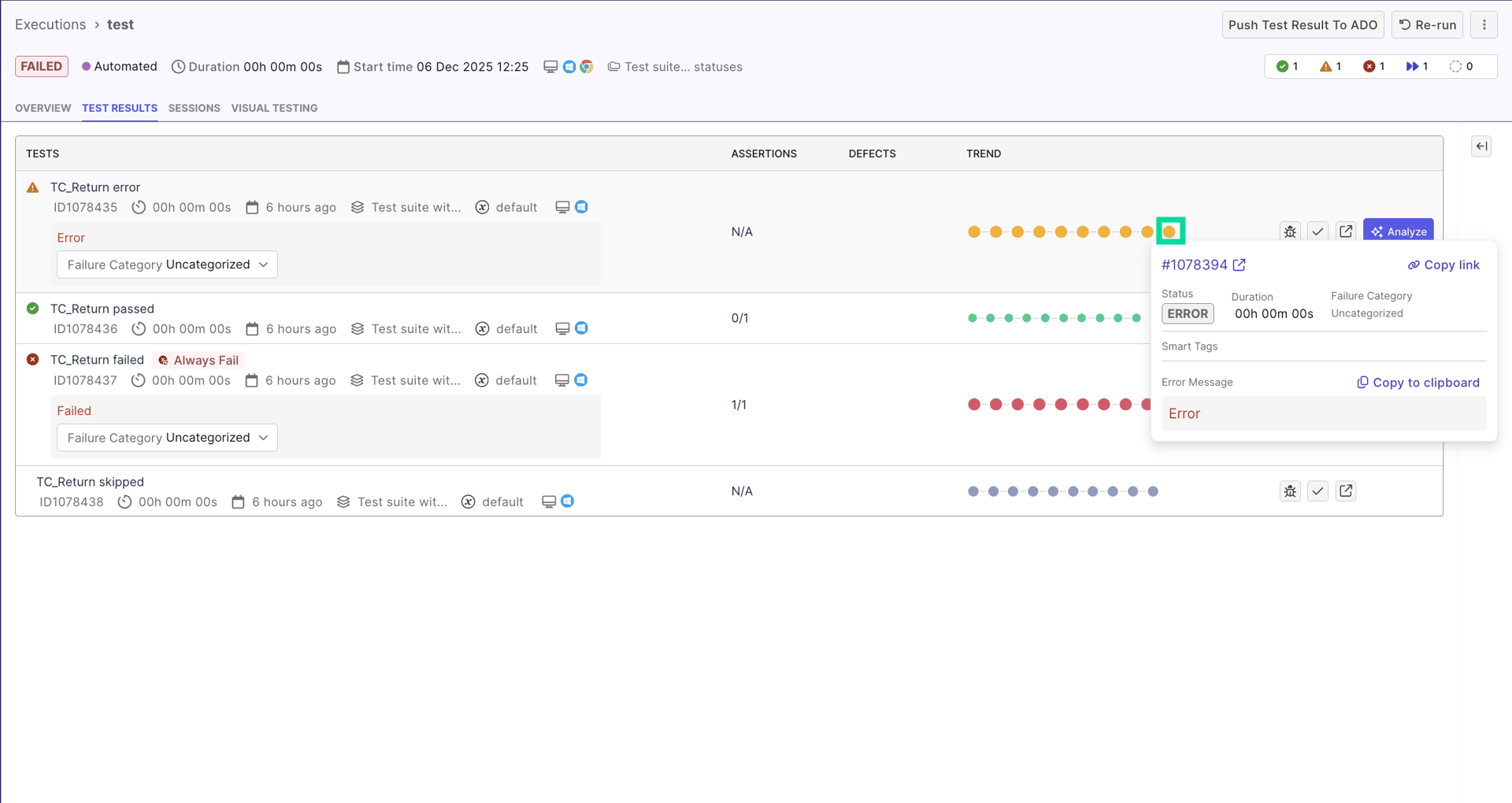

4. The trend line displays most 10 recent runs of the test case, up until (and excluding) the current run, arranged from oldest (left) to most recent (right). Hover on each node to view details of any of these runs:

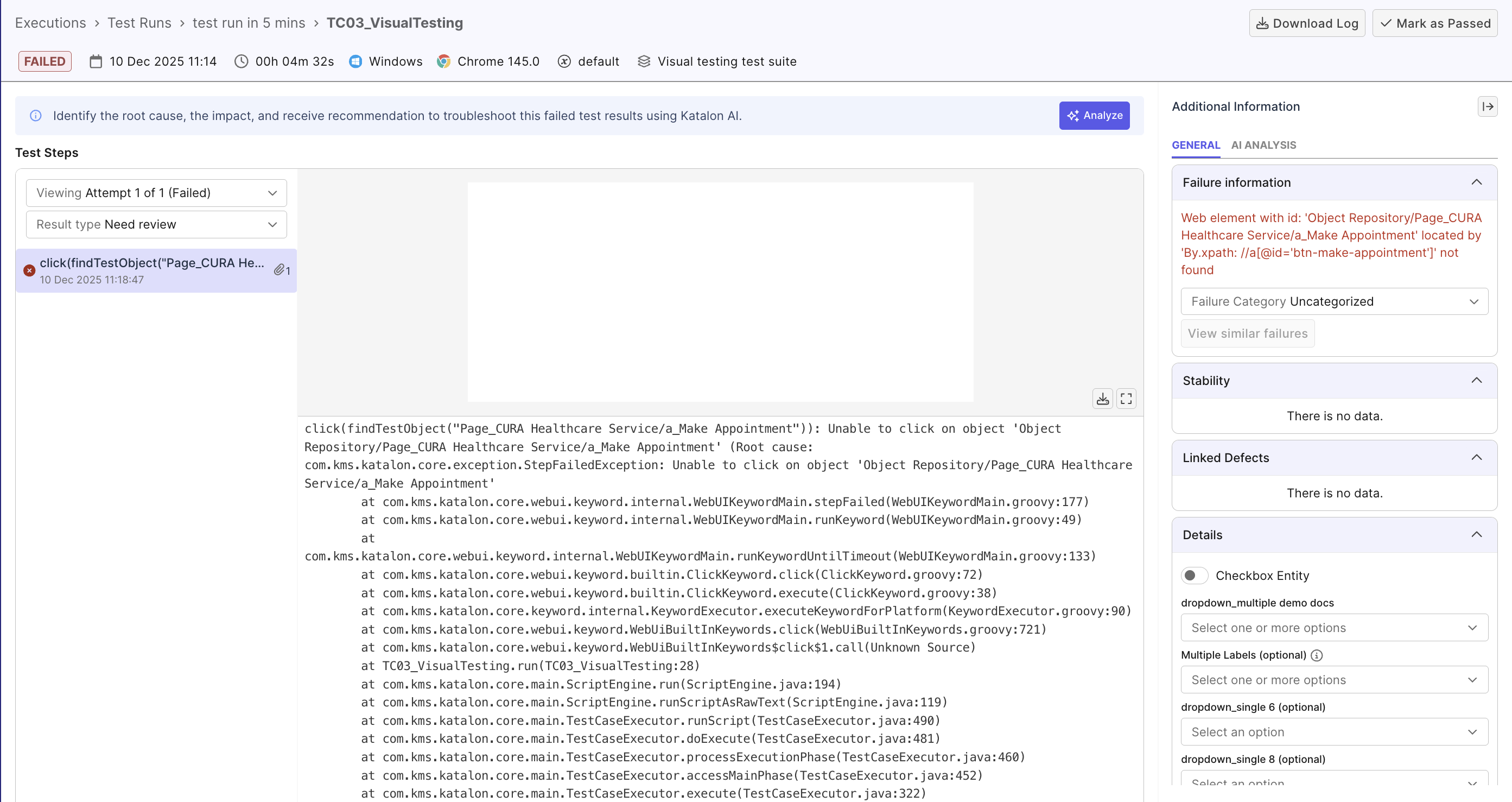

5. Each test result details page displays details such as:

• Test run configurations at the top.

• Execution log with test step details.

• Failure information with category and, and the similar failures button that redirects you to a failure report filtered by the current failure's category.

• Stability trend line with history of past runs. You can hover on each node to view details of each run's result.

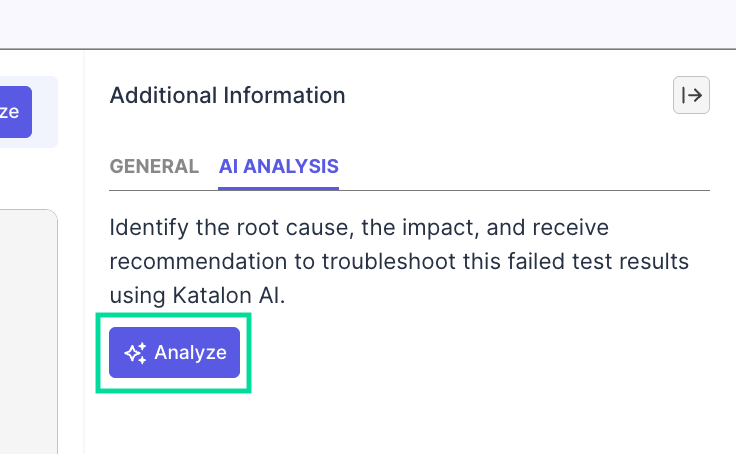

If the test result is failed, you can switch to AI-analysis tab, to have Katalon's AI analyze the root cause, impact, and recommendation to troubleshoot this failure:

For each test case, TestOps does calculations in the background and displays at the test case level, so you can quickly identify problematic tests. Hovering on each label shows more details, and how smart tags are calculated. See Smart Tags for more details on smart tags.
