Data-driven execution

Data-driven execution allows you to execute your test with multiple data set.

Perform data-driven testing

There are two steps to perform data-driven execution:

  1. Add data files to workspace.
  2. Add data-driven commands.
  3. Modify your test to use the data.

Add data files to workspace

Katalon Recorder supports adding CSV and JSON data files to your workspace:

  1. Click on the add icon next to Test Data in the Workspace left-side bar.
  2. Select CSV or JSON files.

You should see your data files under Test Data.

Add data-driven commands

Refer to Data-driven commands for more information.

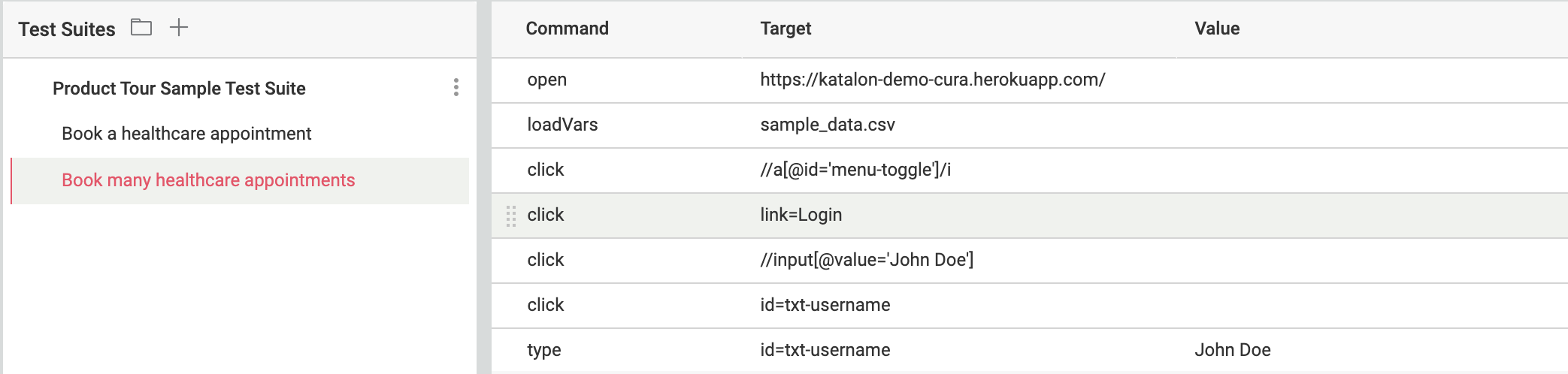

  1. Add a loadVars command to the beginning of your test.
  2. Type in the data file name to the target of the loadVars command (for example, data.csv).
  3. Add a endLoadVars command to the end of your test.

Change your test to use variables

Use variables with the same names as the columns in your CSV file.

For example, if your CSV file has a column named firstName, then you can change a test step type | id=first-name | Thomas to type | id=first-name | ${firstName} will make it use the data from that column.

Data-driven commands


The loadVars command loads the values from the data file specified in its Target.

When you execute a test containing loadVars and endLoadVars commands, the following process will take place, with i start with 1 and ends with the number of rows in the data file:

  1. The ith row of the data file will be fetched.
  2. The values of the row will be mapped to the variables used in the test case.
  3. The steps between loadVars and endLoadVars will be executed using these mapped values.


The endLoadVars command terminates the data-driven block. You need to add it to your test, otherwise you will get an error message.

Sample projects

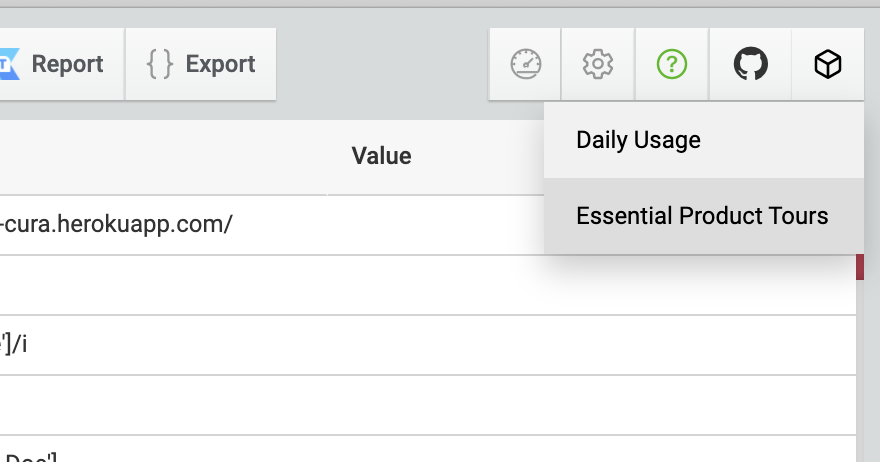

Katalon Recorder comes with a set of built-in sample projects to get you started with data-driven executions.

  1. Go to Templates.
  2. Go to Read and write value with CSV file
  3. Add Fill a form with data from CSV file sample project.
