Library management in Katalon Studio

This document shows ways to add external libraries to Katalon Studio and manage them effectively within a test project.

Katalon Studio allows using external Java .jar libraries either through project settings or by adding them to a designated folder. You can leverage this capability to extend Katalon Studio and handle specific situations when needed.

Add external libraries to a project

You can add external libraries to a Katalon Studio project in three different ways:

• Use the Gradle plugin.
• Go to Library Management settings of a project.
• Copy and paste a library .jar file to the Drivers folder of a project.

Use Gradle in Katalon Studio

Katalon Studio supports automatically downloading libraries from Maven repositories using the Gradle plugin. You can refer to the official GitHub repository here:
https://github.com/katalon-studio/gradle-plugin

Using Gradle is especially useful for managing multiple dependencies consistently and avoiding manual .jar handling across environments.

If you're managing Gradle manually, check the Gradle version to check manually if Katalon Studio supports this version:

1. Check the Gradle version with the following command:

gradle -version

Result:

Gradle 7.5.1
Build time: 2022-08-05 21:17:56 UTC Revision: d1daa0cbf1a0103000b71484e1dbfe096e095918 Kotlin: 1.6.21 Groovy: 3.0.10 Ant: Apache Ant(TM) version 1.10.11 compiled on July 10 2021 JVM: 17.0.17 (Homebrew 17.0.17+0) OS: Mac OS X 15.6.1 aarch64

The Gradle version must be compatible with the Java version

Compatibility Matrix

2. Check if Katalon supports that library and what version is compatible in About Katalon Studio Enterprise > Installation details > Plug-ins tab, and search org.apache.commons:

Use project settings

To add external libraries in project settings, do as follows:

1. In Katalon Studio, go to Project > Settings > Library Management.
2. In Library Management > External Libraries, click Add to browse your .jar file(s) (and dependencies if any).

To remove an added external library, select a library and click Remove.

3. Click Apply and Close.
4. If prompted, save resources to apply changes.

Once saved, Katalon Studio reloads the project and adds the library files to the project's Drivers folder.

Copy and paste a library .jar file to the Drivers folder

1. Copy the .jar file (and dependencies if required).
2. Paste the file into the project's Drivers folder.
3. Close and reopen the project to reload the classpath.

When the .jar file is recognized by Katalon Studio, it becomes available for use in test scripts and custom keywords.

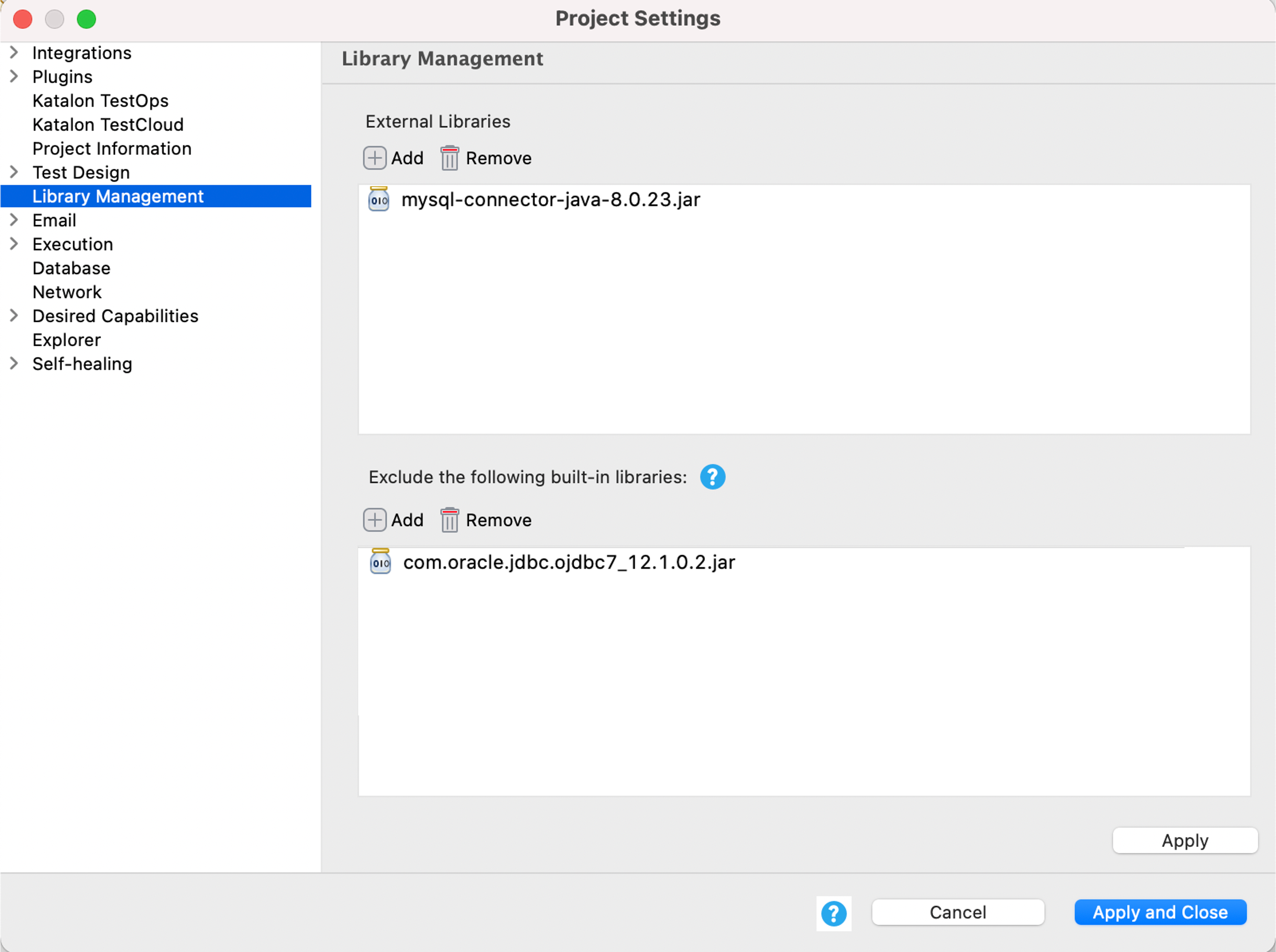

Exclude built-in libraries

Requirement: An active Katalon Studio Enterprise license

The Exclude built-in libraries feature allows you to remove selected built-in libraries defined in the project .classpath file, except for the following core libraries:

• com.kms.katalon.*.jar
• selenium-server-standalone-3.141.59.jar
• poi-3.17.jar
• poi-ooxml-3.17.jar
• poi-ooxml-schemas-3.17.jar
• java-client-7.0.0.jar
• io.cucumber.*.jar

Removing these core libraries may cause feature failures.

You can replace excluded built-in libraries with external versions to achieve more flexible dependency control.

Best practice steps for managing external libraries

The following steps are most recommended to help reduce classpath conflicts, improve execution stability, and ensure consistency across local and CI/CD environments.

Step 1: Configure Gradle dependency scopes appropriately

When defining dependencies in build.gradle file, carefully choose the scope:

Feature	compileOnly	implementation
Required Stage	Compile Time Only.	Compile Time AND Runtime.
Visibility	The dependency is not visible to downstream consumers (other modules depending on your project).	The dependency is visible to downstream consumers.
Included in Final Build	NO. The .jar file is not packaged into the final output (.jar or application build).	YES. The .jar file is packaged into the final output.
Primary Use Case	Used for dependencies that are provided by the runtime environment (e.g., Katalon Studio, Tomcat, JDK).	Used for core libraries that are essential for the application to function and are not expected to be provided externally.
Impact on Conflicts	Mitigates Conflict Risk: Forces your code to use the version already present in the runtime environment.	High Conflict Risk: If the version you specify conflicts with the runtime version, you will likely encounter a runtime error.
Benefit in Katalon	Best Practice for common libraries (like Apache Commons, Groovy, Selenium) that Katalon already bundles.	Only use for brand new, specialized libraries that are definitively not included in Katalon's distribution.

Recommendation:
Use compileOnly for common libraries (such as Apache Commons, Groovy, Selenium) that Katalon Studio already provides.
Use implementation only for libraries that are not included in Katalon’s distribution.

This approach minimizes version conflicts between external libraries and Katalon’s runtime environment.

Step 2: Build the Gradle

Run the following command:

gradle getDeps

For projects using Gradle, the getDeps task can be used to:

• Collect all required runtime dependencies
• Resolve transitive dependencies automatically
• Copy the required .jar files into the project’s Drivers folder

This is particularly important for:

• CI/CD execution
• Preventing classpath synchronization issues between Gradle’s cache and Katalon Studio’s Groovy compiler

Step 3: Check library loading

After adding or updating libraries:

• Confirm that the .jar files appear in the Drivers folder
• Reload the project if necessary
• Ensure scripts referencing the libraries compile and execute successfully
