Sample BDD (Cucumber) project in Katalon Studio

Introduction

Behavior-Driven Development (BDD) is a testing methodology that focuses on describing a product's behavior in plain English. Using Cucumber, a popular BDD framework, you can write test cases in Gherkin, a human-readable syntax.

This document provides an overview of the components in a sample BDD (Cucumber) project using Katalon Studio.

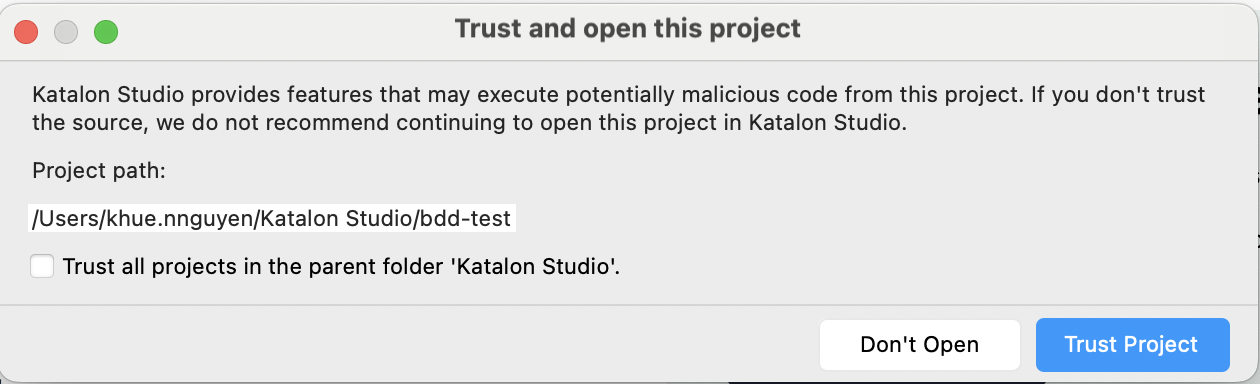

Open the sample BDD test project

The application under test (AUT) is a React-based Calculator, accessible at: https://katalon-studio-samples.github.io/calculator.

To access the BDD sample project in Katalon Studio:

Navigate to File > New Sample Project > Sample BDD Cucumber Tests Project.

Or, you can download the sample BDD test project from our GitHub repository: Sample BDD tests.

Overview of Sample BDD Project Components

Profiles

In Katalon Studio, the execution profile is used to manage global variables that can be reused across different test cases in the project. The sample project includes a default execution profile that defines a key global variable:

Go to Profiles > default

The sample project includes a default execution profile that defines a key global variable:

To learn more about execution profile, you can refer to this document: Execution profile.

Feature Files

Feature files define the test scenarios using Gherkin syntax. They act as a high-level blueprint for what the test is supposed to do. To locate the sample feature files in Katalon Studio:

1. Go to Include > features > operations.

2. Double-click any .feature file to open and view its contents.



Example: Minus.feature

The Minus.feature file defines a test scenario for subtraction operations using three Gherkin steps (Given, When, Then):

Feature: Minus3

  Scenario Outline: Minus
    Given The Calculator page is loaded successfully
    When <firstOperand> minus <secondOperand>
    Then I get the result <result>

    Examples:
      | firstOperand | secondOperand | result |
      | 10           | 20            | -10    |
      | 123          | 456           | -333   |

Step definitions

Step definitions connect Gherkin steps to executable code, acting as the bridge between written scenarios and the actual test logic. Each step definition is a method that uses either a regular expression or a Cucumber expression (See the code snippet in Step 2 for examples of both) to map to specific Gherkin steps.

In this sample project, step definitions are organized into two separate packages located under Include > scripts > groovy:

1. Common Package: Contains Common.groovy, which defines shared Given and Then steps for all feature files.

2. Operations Package: Contains four step definition files for Minus (-), Plus (+), Divide (÷), and Multiply (x), which define When steps for their corresponding feature files. For example, the Minus.groovy file defines the When step in the Minus.feature file:

//All the required packages
class Minus

    //Regular expression
    @When("(\\\\d+) minus (\\\\d+)")
    def minus(long firstOperand, long secondOperand) {
        WebUI.callTestCase(findTestCase("Test Cases/common/Minus number"),
        [ ('firstOperand') : firstOperand, ('secondOperand') : secondOperand ],
        FailureHandling.STOP_ON_FAILURE)

    //Or, Cucumber expression
    @When("{long} minus {long}")
    def minus(long firstOperand, long secondOperand) {
        WebUI.callTestCase(findTestCase("Test Cases/common/Minus number"),
        [ ('firstOperand') : firstOperand, ('secondOperand') : secondOperand ],
        FailureHandling.STOP_ON_FAILURE)
    }
}

Executing a Feature File

In Katalon Studio, you can execute feature files directly without linking them to specific test cases, allowing for quick validation of behavior.

To execute a feature file:

1. Open the Test Explorer panel.

2. Navigate to Include > features > operations.

3. Right-click on the desired feature file (e.g., Minus.feature).

4. Select Run Feature File from the context menu.

Custom Keywords

Custom keywords in Katalon Studio allow you to create reusable actions for your test cases.

In this sample project, the ClickNumber.clickNumber keyword is designed to handle number input efficiently. It converts a given number into an integer and inputs it into the React Calculator.

To view the custom keyword, go to Keywords > sample > ClickNumber.groovy in the Test Explorer panel.

Test Listeners (Test Hooks)

Test listeners (test hooks) are test steps created to define events before/after a test case/test suite.

To view the test listeners in this project, in the Test Explorer panel, go to the Test Listeners folder. We created two test listeners:

• TestListener: This test listener opens Katalon Helper before every test suite execution.

• Listener: This test listener closes the browser after every test case execution.

Test Case

Test case files, similar to feature files, perform mathematical operations using the React Calculator. They execute the steps defined in their corresponding feature files and validate the results.

To view test cases in this sample project:

1. Open the Test Explorer panel.

2. Navigate to Test Cases > operations.

The script below illustrates how a test case executes its corresponding feature file (e.g., linking Minus Test Case to Minus Feature File):

//All the required Java packages

CucumberKW.runFeatureFile('Include/features/operations/Minus.feature')

Test Suite

A Test Suite groups multiple test cases for efficient execution, so that related tests run together and generate consolidated reports for analysis.

Note: Test suites cannot execute feature files directly; you must create linked test cases first.

To view the sample test suite, navigate to Test Suite > Verify Operations in the Test Explorer panel.

Execute selected test cases or test suites

To execute a test case or a test suite in the sample project:

1. Select the test case/test suite you want to execute.

2. Click Run or press Ctrl + Shift + A (macOS: Cmd+Shift+A). You can choose different browsers to execute your test in the dropdown list next to Run.



3. View the test result in the Log Viewer tab.

View BDD reports in Katalon Studio

Katalon Studio generates Cucumber Reports after executing a test suite, allowing you to review each test's status—whether they passed, failed, encountered errors, or remain incomplete.

1. To view your reports in different formats (HTML, CSV, XML):
2. In the Test Explorer panel, right-click on your desired report folder. Select Open Containing Folder from the context menu and navigate to the cucumber_report folder for HTML, CSV, or XML reports.
3. An HTML report will look like this:
