API testing best practices: Scripting standards

This document shows the best practices to API testing in Katalon Studio, to assure tests don't just pass, but also are properly validated.

Scenario:​

A QA team runs a regression suite of 500 API tests. Every test passes with green checks because they only verify Status Code: 200 OK. However, the production application begins crashing.

Investigation reveals the API silently changed a user_id field from an Integer (123) to a String ("123"). The existing API tests missed this "silent failure" because they lacked Deep Contract/Schema Validation.

This guide aims to elevate API testing, from simple "Connectivity Checks" (Is the server up?) to Contract & Logic Validation (Is the data correct?).

Key Takeaways​

  • 200 OK is Not Enough: A successful connection does not equal valid data.
  • Validate the Schema: Use JSON Schema validation to enforce strict data types (String vs. Integer).
  • Verify Values: Use assertions to confirm specific business logic (e.g., inventory > 0).
  • Monitor Latency: Fail tests if the API response time exceeds the SLA (e.g., >2000ms).

Best practices steps for API testing​

Requirements
  • JSON Schema Files: Prepare .json schema files for your critical endpoints and store them in a project folder (e.g., /Schemas).
  • Katalon Studio version 10.x or higher (recommended for latest keyword support).

In this example, we are using this API Endpoint: https://sample-web-service-aut.herokuapp.com/api/users/7.

You can choose pattern A, B, or C to follow through, for different validation purposes.

This pattern provides stability, detecting silent breaking changes in the API structure. Use it on all GET requests and critical data retrieval endpoints.

Pattern A: Deep contract validation (schema)​

  1. Create the Schema File:
    • Create a folder named Schemas in your Katalon Project Root.

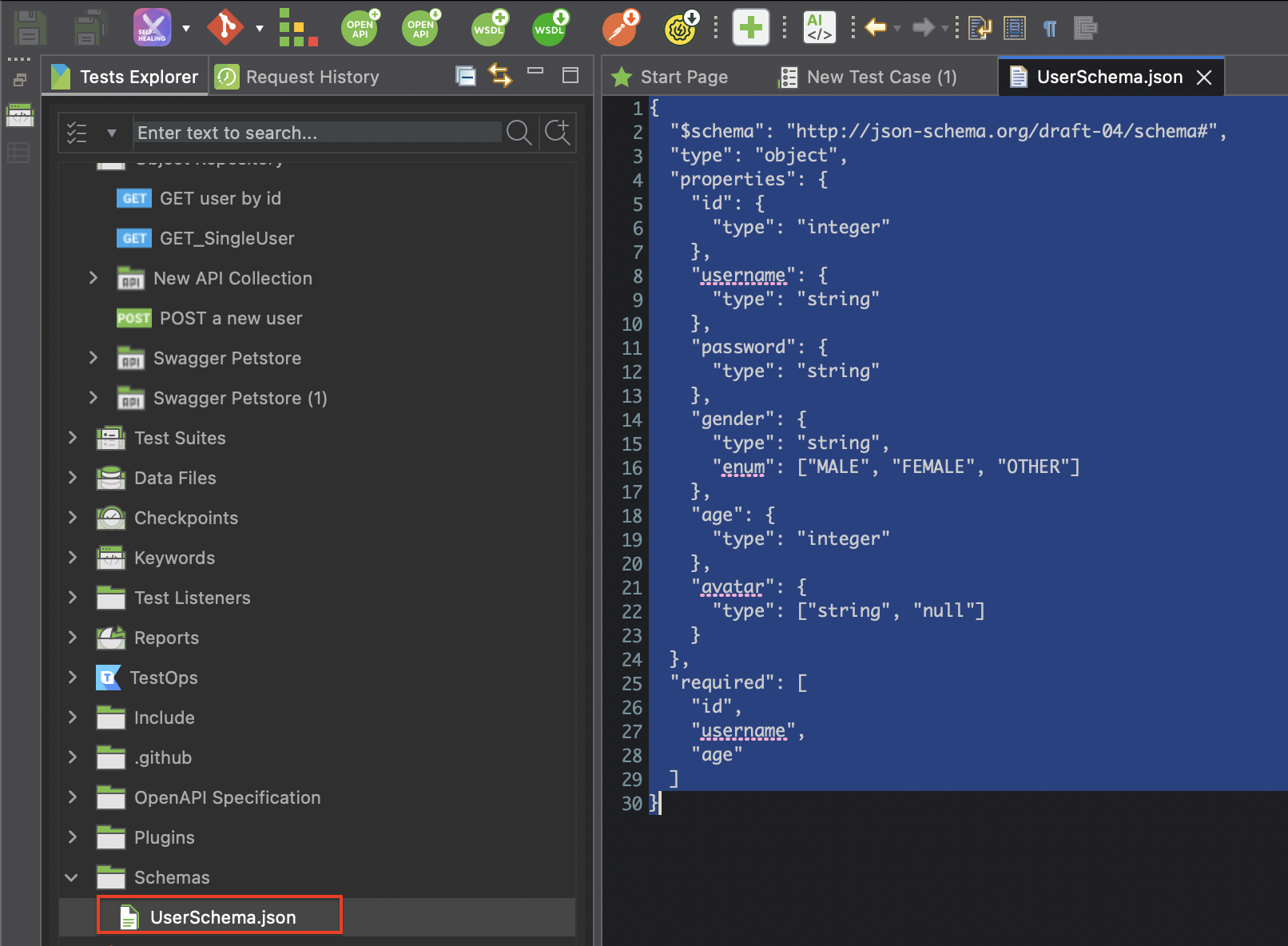

    • Create a new file (e.g., UserResponseSchema.json) and paste your expected JSON structure for the API Request:
api testing best practices scripting standards 1
  1. Write the Validation Script:
    • In your Test Case, use the script below. Note that you must read the file's content string, not just pass the file path.
import com.kms.katalon.core.configuration.RunConfiguration
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS

// 1. Send Request
def response = WS.sendRequest(findTestObject('Object Repository/User/GET_User_ById'))

// 2. Read the Schema File Content
// We use RunConfiguration.getProjectDir() to ensure the path is correct across all environments
String schemaPath = RunConfiguration.getProjectDir() + "/Schemas/UserResponseSchema.json"
String schemaContent = new File(schemaPath).text

// 3. Validate Response against Schema Content
boolean isMatch = WS.validateJsonAgainstSchema(response, schemaContent)

// 4. Assert
if (!isMatch) {
    KeywordUtil.markFailed("Response did not match the Schema contract.")
}

The validateJsonAgainstSchema keyword expects the JSON content string as the second argument, not the file path. Always use .text to read the file first.

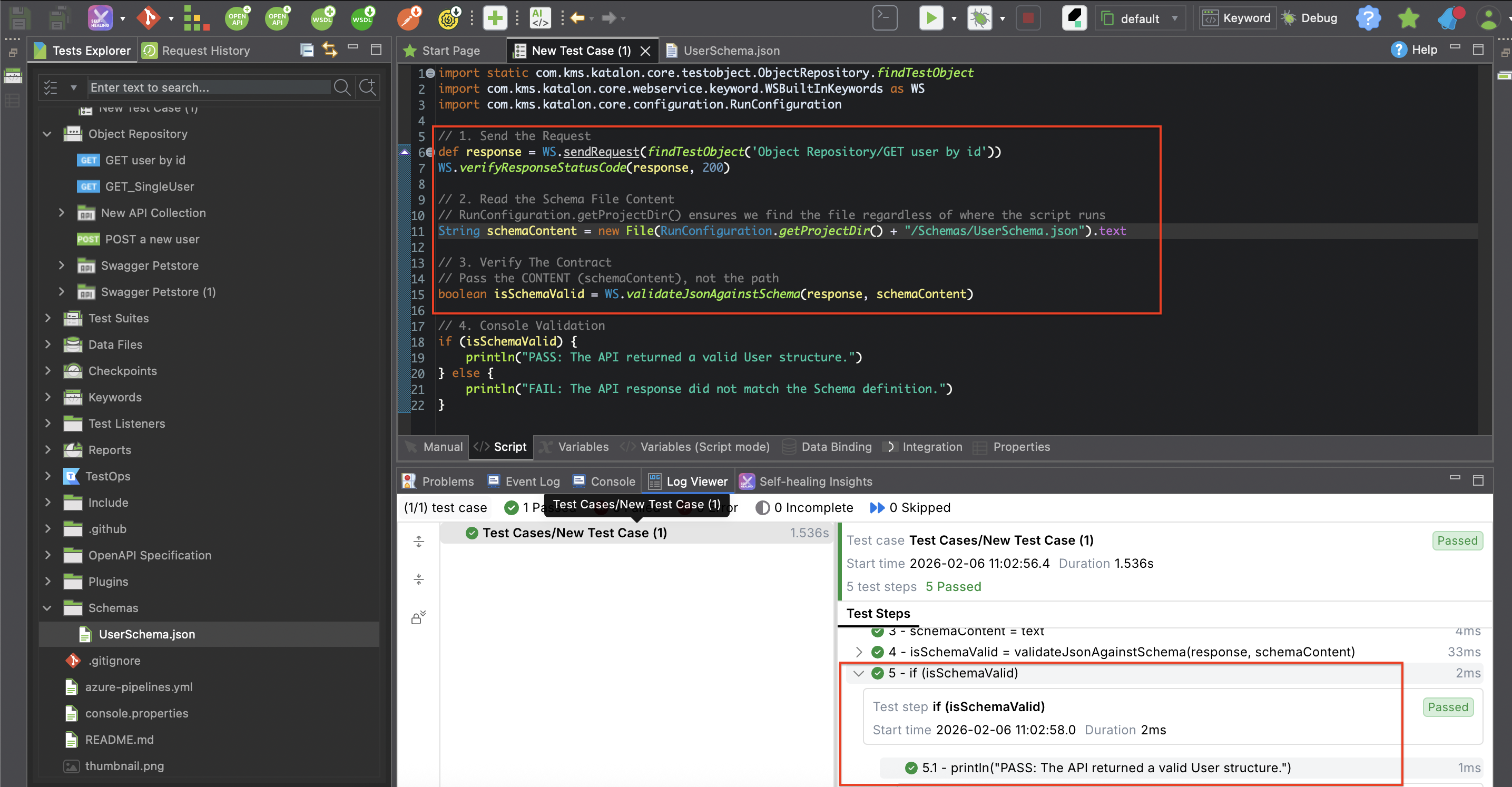

  • Outcome:
api testing best practices scripting standards 2

Pattern B: Standard verification (status & headers)​

This pattern is the standard verification for status and headers, minimum requirement for any API test. Use it on every single request.

  1. Add Status Check:
    • Immediately after your sendRequest line, add the status verification.
// 1. Verify Status Code
// Common Codes: 200 (OK), 201 (Created), 204 (No Content) WS.verifyResponseStatusCode(response, 200)

Note: For negative testing (e.g., "Login with bad password"), change the expected status code to 401 or 403

  1. Add Content-Type Check:
    • Since Content-Type is a Header, we must use response.getHeaderFields() instead of a keyword.
// 2. Verify Content-Type Header
// We grab the headers map and check if 'Content-Type' contains 'json'
def headers = response.getHeaderFields()

// Check if header exists AND contains 'application/json' (ignoring charset details)
if (!headers['Content-Type'].toString().contains('application/json')) {
    KeywordUtil.markFailed("Invalid Content-Type. Expected JSON but found: " + headers['Content-Type'])
}

If you want to check for a root element in the body instead of a header:

// Verify that the 'id' field exists in the body, confirming valid JSON was received
WS.verifyElementPropertyValue(response, 'id', 7)
  • Example Script:
import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import com.kms.katalon.core.util.KeywordUtil


// 1. Send Request
def response = WS.sendRequest(findTestObject('Object Repository/GET user by id'))


// 2. Verify Status Code
WS.verifyResponseStatusCode(response, 200)
println("PASSED: Status Code verified as 200")


// 3. Verify Header (Content-Type)
def headers = response.getHeaderFields()
String contentType = headers['Content-Type'].toString()


if (contentType.contains('application/json')) {
	println("PASSED: Content-Type header verified as application/json")
} else {
	KeywordUtil.markFailed("FAILED: Content-Type header mismatch. Found: " + contentType)
}


// 4. Verify Body Values
WS.verifyElementPropertyValue(response, 'id', 7)
println("PASSED: Body field 'id' verified as 7")


WS.verifyElementPropertyValue(response, 'username', 'Alex Test')
println("PASSED: Body field 'username' verified as 'Alex Test'")

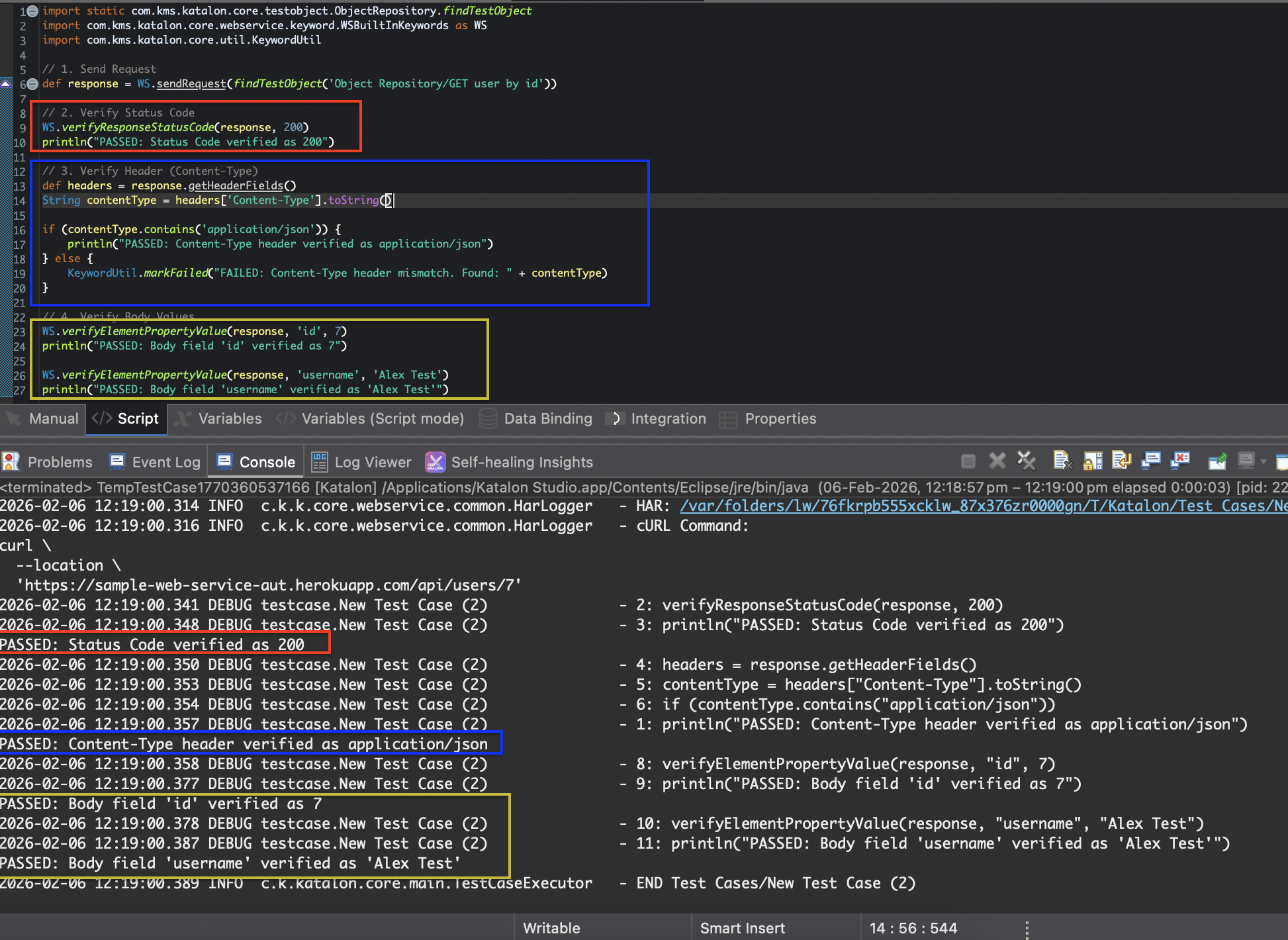

  • Outcome:
api testing best practices scripting standards 3

Pattern C: Business logic verification (values)​

Going beyond simple equality checks to enforce business rules.

When to use: When you don't know the exact value (e.g., a random ID) but need to verify it follows a format or rule.

We have two primary ways to implement this, depending on whether you are checking Text (Strings) or Math (Numbers/Lists).

Approach 1: The "Native Keyword" Way (Best for Text & Exact Matches)​

Use this for standard checks like "Does the username match?" or "Does the email contain an @ symbol?" without writing complex code.

  • Check for Exact Match:
    • Use WS.verifyElementPropertyValue to check if a specific JSON field exactly matches a value.
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS

// Check if 'username' is exactly 'Alex Test' inside the JSON body
WS.verifyElementPropertyValue(response, 'username', 'Alex Test')
  • Check for Partial Match (Contains):
    • Use WS.verifyMatch with Regular Expressions (Regex) to check patterns (e.g., "Contains").
// 1. Get the value of the specific field
String emailValue = WS.getElementPropertyValue(response, 'email')

// 2. Verify it contains "@" using Regex
// Syntax: WS.verifyMatch(actualValue, expectedRegex, isRegex)
// Regex ".@." means: any text, followed by @, followed by any text
WS.verifyMatch(emailValue, '.@.', true)

println("PASSED: Email field contains '@'")
  • Example Script:
import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import com.kms.katalon.core.util.KeywordUtil


// 1. Send Request
def response = WS.sendRequest(findTestObject('Object Repository/GET user by id'))
WS.verifyResponseStatusCode(response, 200)

// 2. EXACT MATCH
WS.verifyElementPropertyValue(response, 'id', 7)
println("PASSED: User ID is 7")

WS.verifyElementPropertyValue(response, 'gender', 'FEMALE')
println("PASSED: Gender is FEMALE")

// 3. REGEX / PARTIAL MATCH
String username = WS.getElementPropertyValue(response, 'username')
WS.verifyMatch(username, '(?i)Alex.*', true)
println("PASSED: Username starts with 'Alex'")

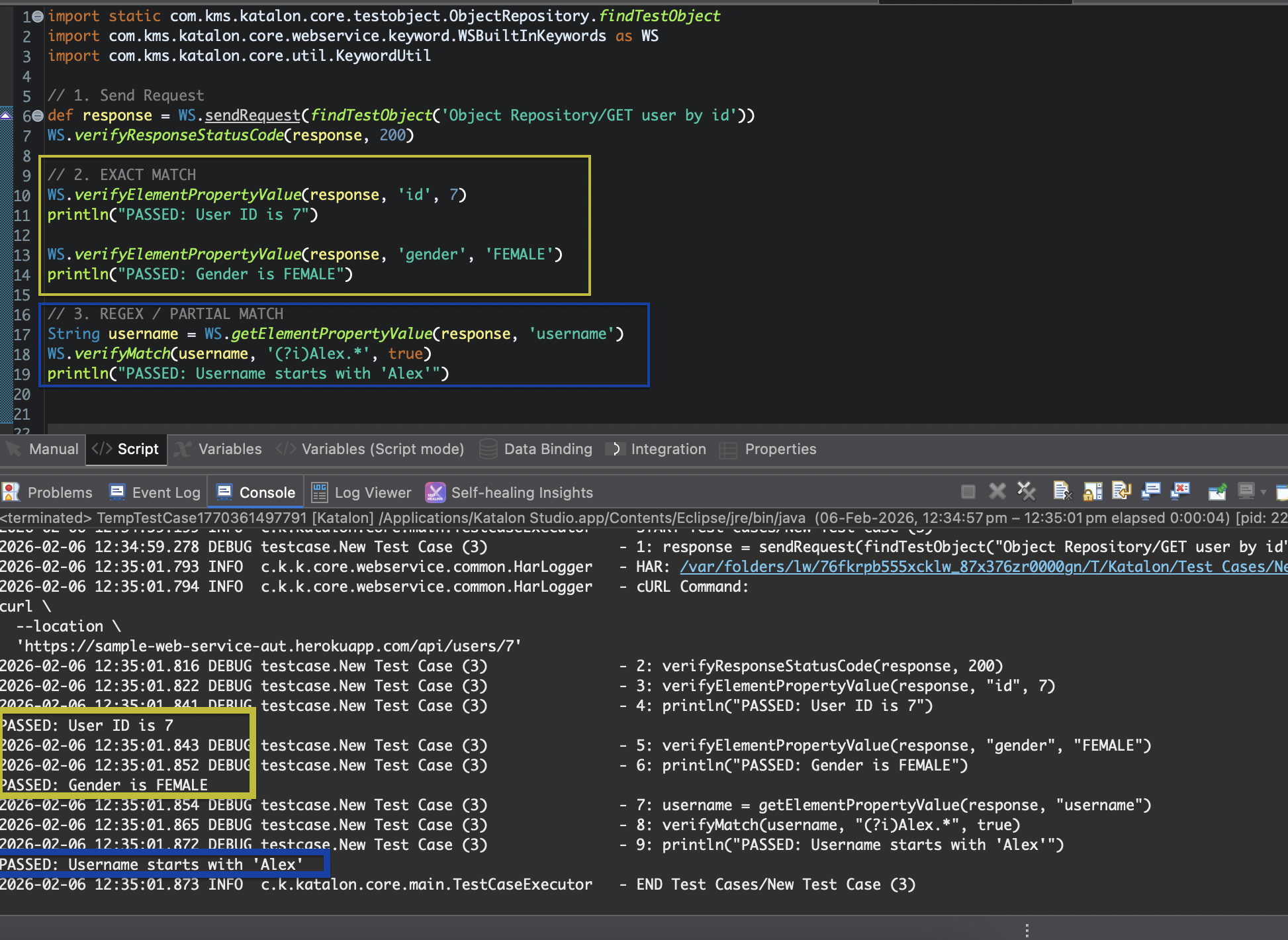

  • Outcome:
api testing best practices scripting standards 4

Pattern D: Response time assertion (performance)​

When to use: SLAs: When you have a strict Service Level Agreement (e.g., "All APIs must respond within 2000ms").

  • Define the SLA Limit:
    • Decide on your threshold (e.g., 2000ms).
  • Measure and Assert:
    • Use .getElapsedTime() on the response object.
    • Use a simple if condition to compare the Actual Time vs. the Limit.
  • Choose Failure Type:
    • Hard Fail: Use markFailed() if performance is critical (stops the test).
    • Soft Warning: Use markWarning() if you just want to track it without stopping the pipeline (recommended for Staging).
  • Example Script:
import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import com.kms.katalon.core.util.KeywordUtil

// 1. Send Request
def response = WS.sendRequest(findTestObject('Object Repository/GET user by id'))
WS.verifyResponseStatusCode(response, 200)

// 2. Define SLA (Limit in milliseconds)
// 2000ms = 2 seconds
long maxResponseTime = 2000
long actualTime = response.getElapsedTime()

println("INFO: API Response Time: " + actualTime + "ms")

// 3. Performance Assertion
if (actualTime > maxResponseTime) {
	KeywordUtil.markWarning("PERFORMANCE WARNING: API took " + actualTime + "ms (Limit: " + maxResponseTime + "ms)")
} else {
	println("PASSED: Response time is within the limit (" + maxResponseTime + "ms)")
}

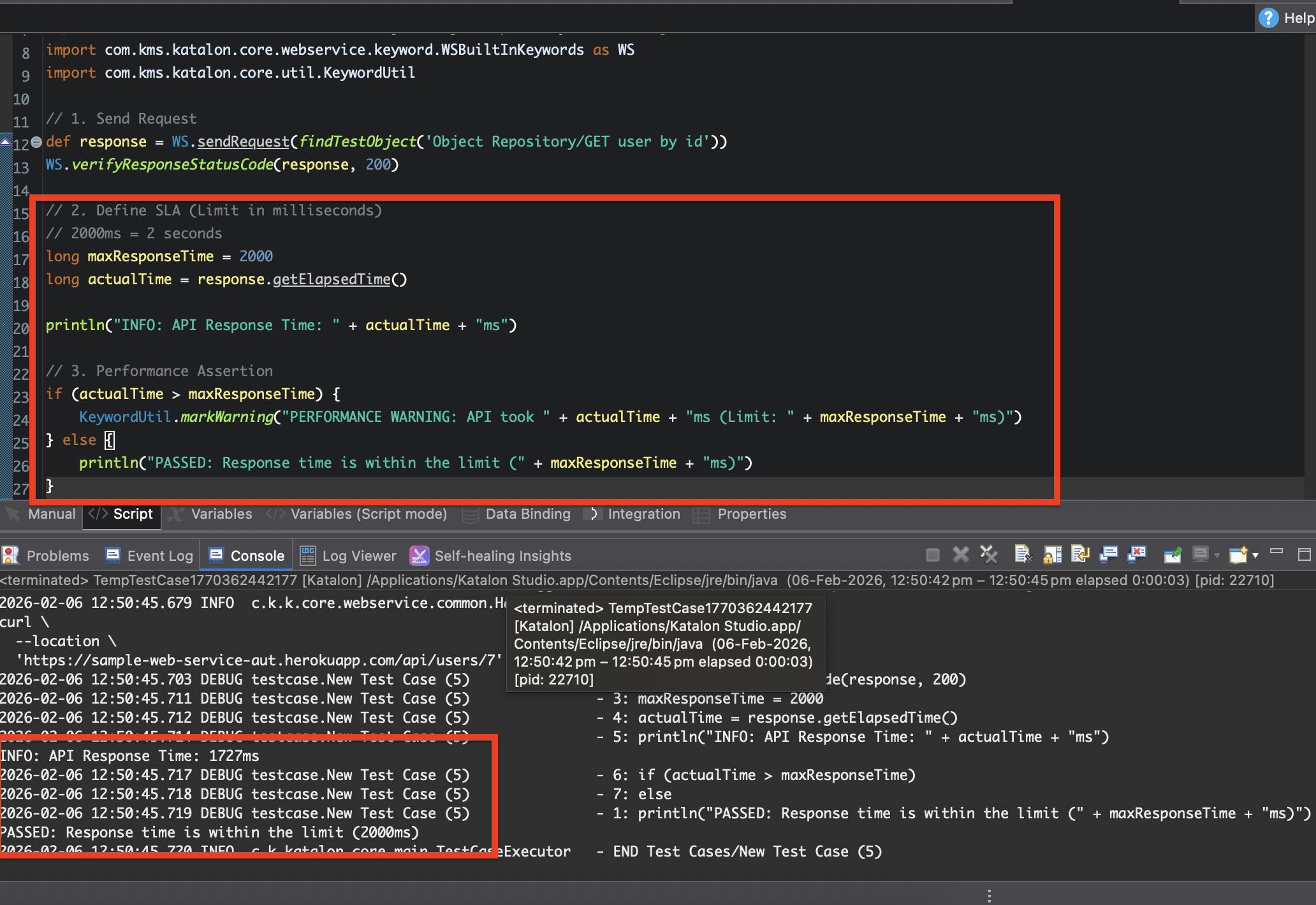

  • Outcome:
api testing best practices scripting standards 6

Pattern E: Dynamic response handling​

Handling unknown or variable response fields dynamically.

When to use: When you want to grab all data from a creation request (POST) and dump it into a report or database.

  • Parse the Response:

    • Convert the raw text into a Groovy object using JsonSlurper.

  • Create a Dynamic Map:

    • Define an empty Map [:] to act as your flexible container.

  • Iterate and Store:

    • Loop through every key-value pair in the response and shove it into your map.

  • Access Dynamically:

    • Retrieve values using the key string (e.g., map['id']) instead of hardcoded dot notation.

  • Example Script:

import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import groovy.json.JsonSlurper

// 1. Send Request
def response = WS.sendRequest(findTestObject('Object Repository/GET user by id'))
WS.verifyResponseStatusCode(response, 200)

// 2. Parse JSON
// println("Raw response: " + response.getResponseText())
def jsonResponse = new JsonSlurper().parseText(response.getResponseText())

// 3. Create Dynamic Map
// This map will hold everything we find, effectively turning JSON into a Variable Map
def dynamicVars = [:]

// 4. Iterate & Store
// Loop through every single field returned by the API
jsonResponse.each { key, value ->
	dynamicVars[key] = value
	// println("Stored Dynamic Variable -> [${key}] : ${value}")
}

// 5. Accessing Values
String fieldToFind = "name"
println("Accessing '${fieldToFind}': " + dynamicVars[fieldToFind])

// You can even iterate over your new map to verify everything isn't null
dynamicVars.each { key, value ->
	if (value == null) {
		println("WARNING: Field '${key}' is null")
	} else {
		println("VERIFIED: '${key}' has value: ${value}")
	}
}

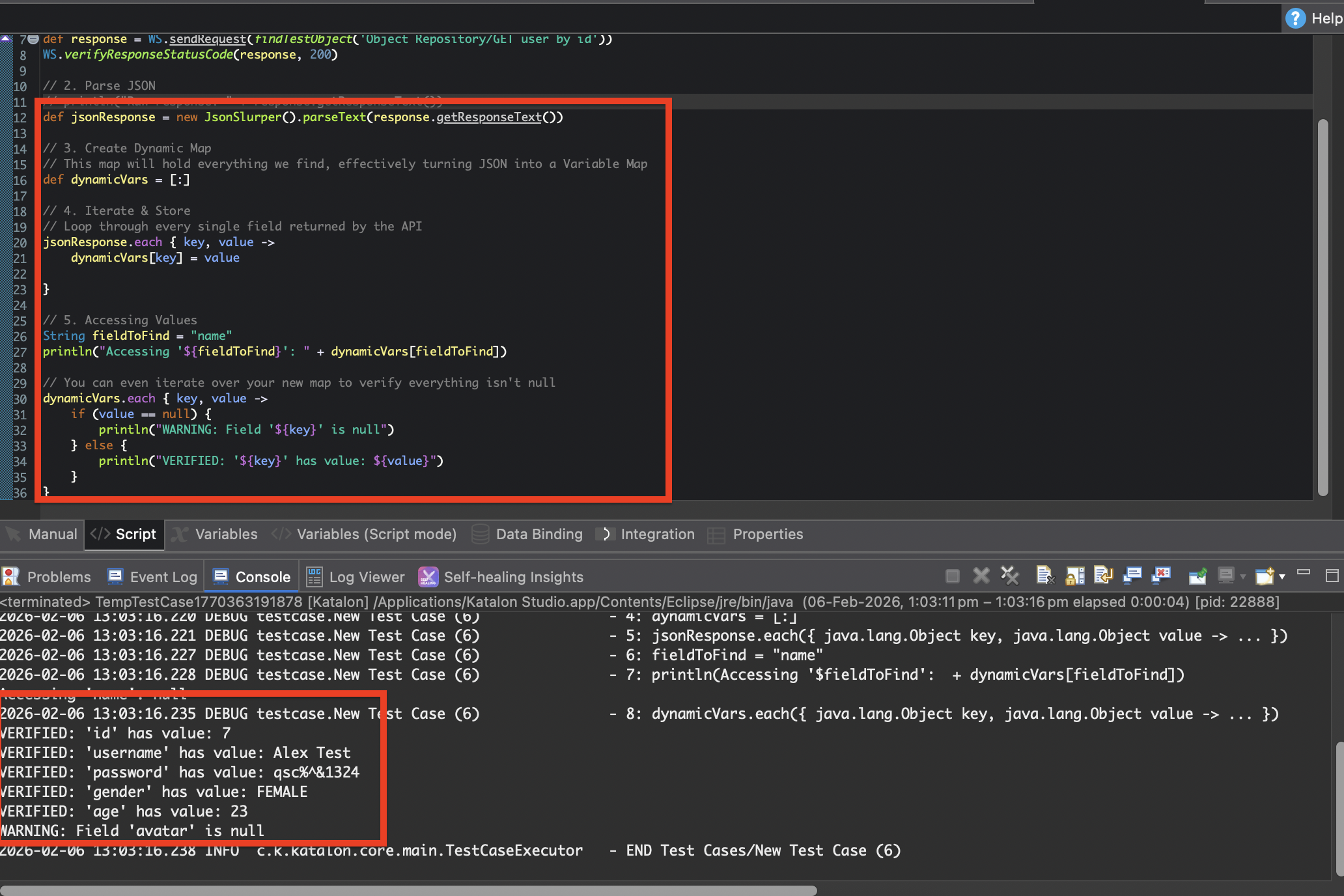

  • Outcome:
api testing best practices scripting standards 7
