Azure DevOps MCP Server Best Practices

This document introduces best practices when using Azure DevOps MCP tools for your AI agent.

Scenario

The primary scenario is the end-to-end automation of the Testing Lifecycle by connecting the test management assets in Azure DevOps (ADO) with the automation environment in Katalon Studio via the ADO MCP Bridge. This includes:

1. Retrieving the list of Test Cases and Test Plans from ADO.

2. Automatically creating corresponding Test Cases in Katalon Studio.

3. Using StudioAssist to generate or update test scripts for those Test Cases.

Purpose and strategic value

The strategic value of setting up the ADO MCP Server is:

• Bridging the Gap: To establish a connection between the testing/requirement management platform (Azure DevOps) and the automation tool (Katalon Studio).

• Enabling AI Automation: To leverage StudioAssist to automatically create, update, and manage Test Scripts based on the detailed requirement information and manual test steps documented in ADO.

• Improving Test Asset Quality: To enhance the quality of ADO Test Cases by requiring users to include the names and locations of captured Test Objects within the ADO Test Case steps.

• Preventing Irrelevant Data Retrieval: To help prevent retrieving incorrect or irrelevant data when querying Azure DevOps by unchecking other unnecessary MCP sources

Key takeaways

• Prerequisites (Preparation) : You need to prepare three key items:

  • A List of Test Objects captured using Katalon's Spy Object.

  • Renaming folders and object names for easier maintenance and reuse.

  • A List of Test Plans and Test Cases defined in ADO.

• Test Case Detail: ADO Test Cases should include the names and locations of captured objects in the test steps.

• MCP Installation: There are three options for installing mcp-proxy: uv (recommended) , pipx , or npm.

• PAT Scopes (Permissions): The Personal Access Token (PAT) must have permissions for Work Items: Read & Write and Code: Read and Build: Read, or Full Access.

• Query Rule: When retrieving data from Azure DevOps, you should use the keyword 'organization' instead of 'project', as the ADO API treats the organization as the project.

Requirements

There are 3 key points that you need to prepare.

List of Test Objects

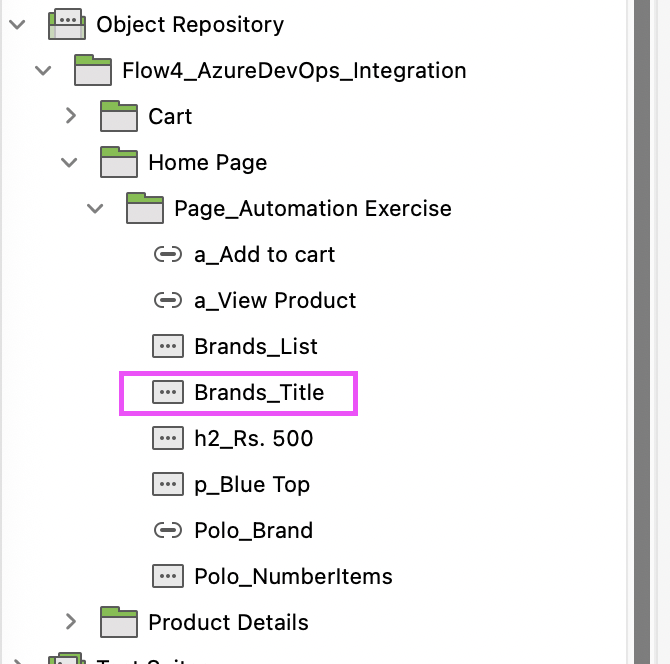

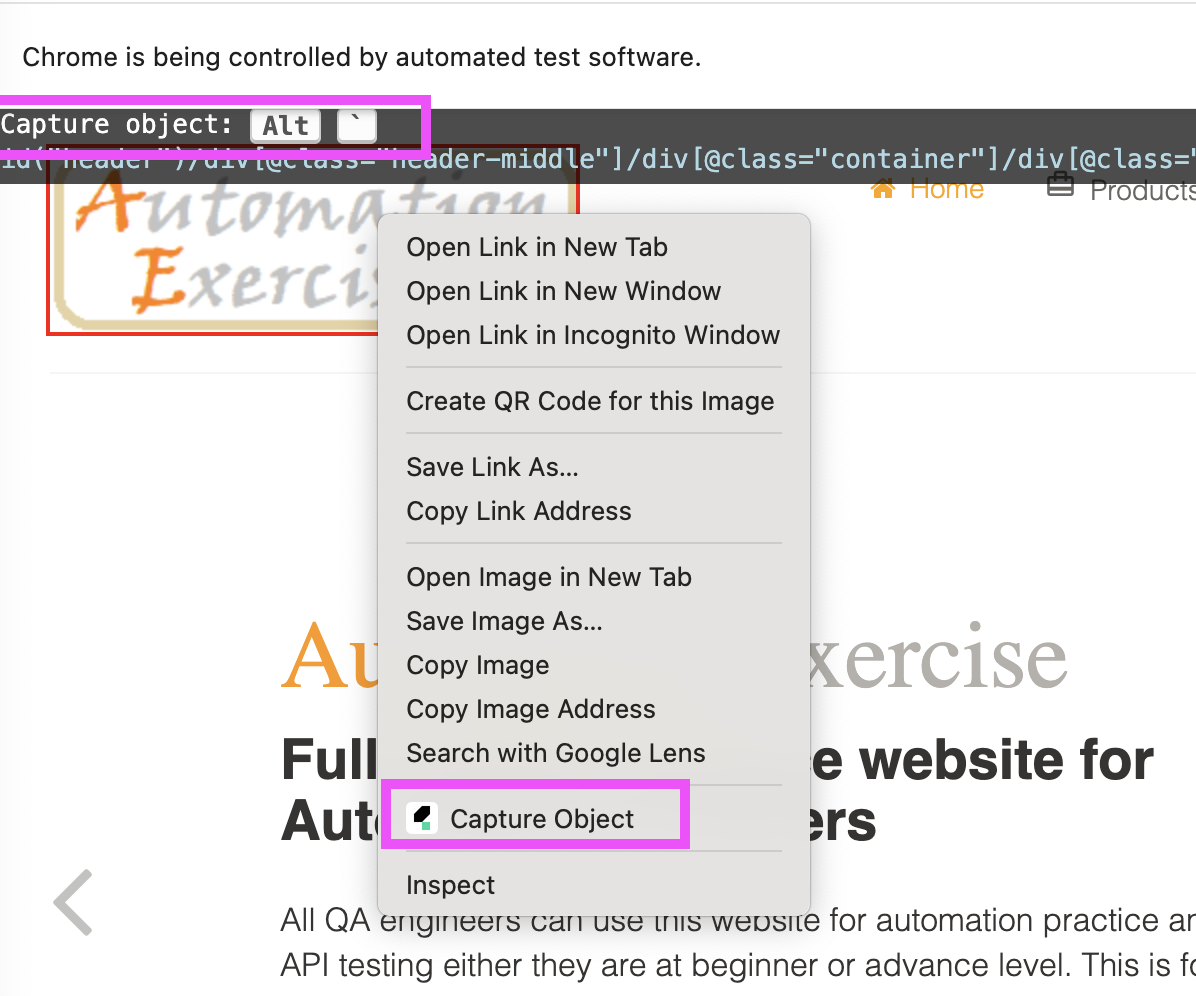

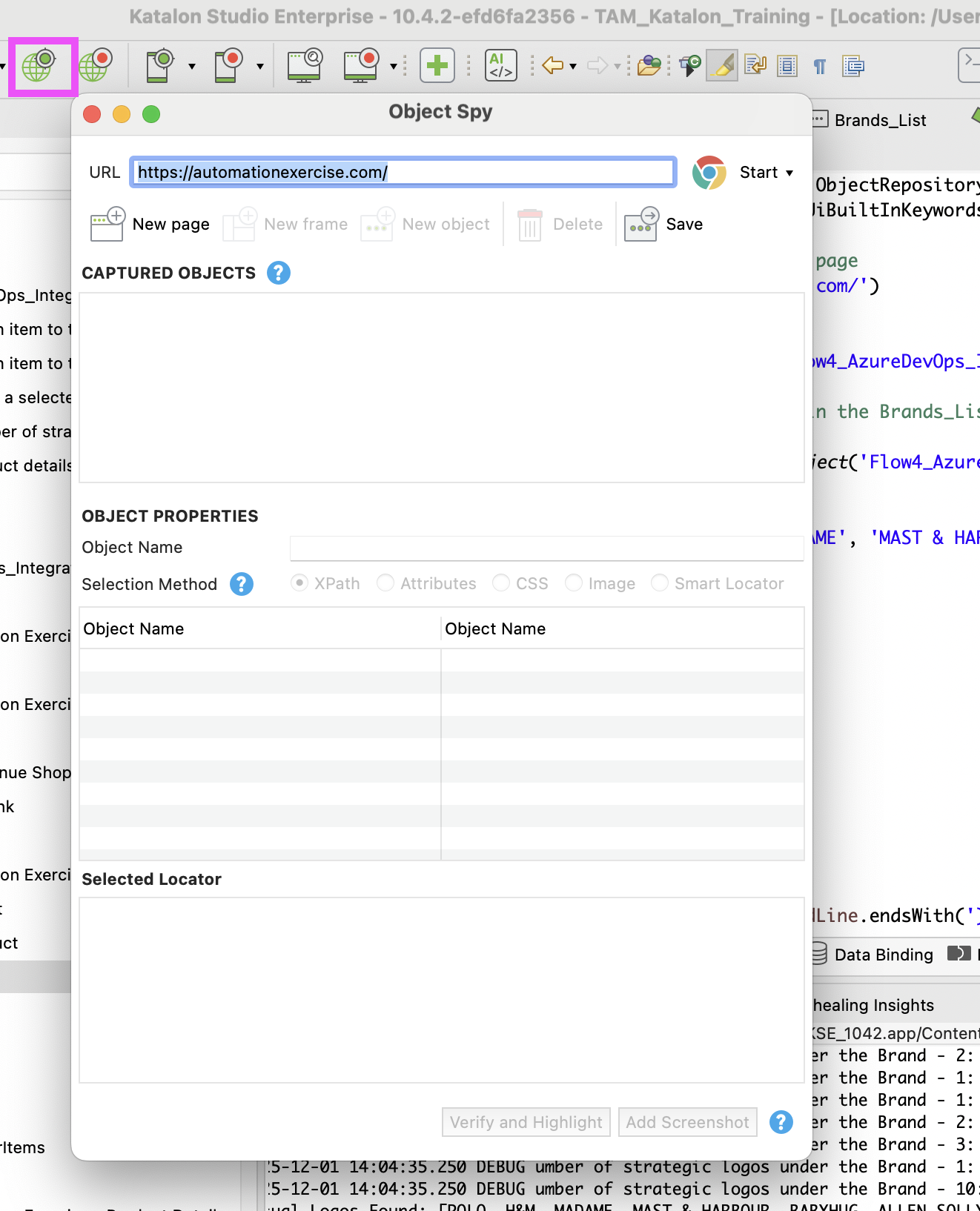

Use Katalon’s Record and Spy features or integrate with Chrome DevTool MCP Server and use StudioAssist to capture all necessary objects required for your test cases. Rename folders and object names for easier identification, maintenance, and reuse when needed

List of Test Plans and Test Cases

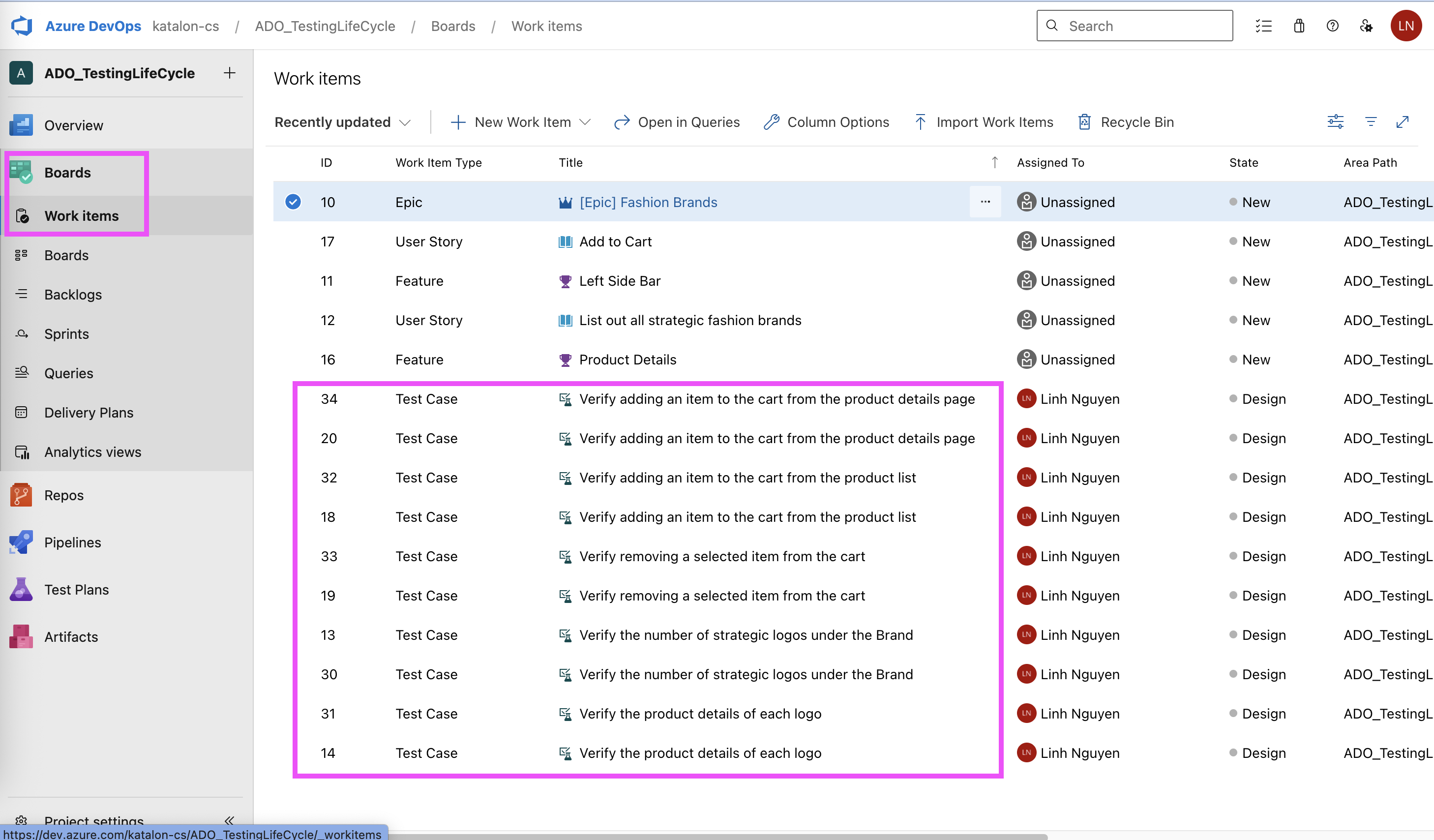

Test Cases:

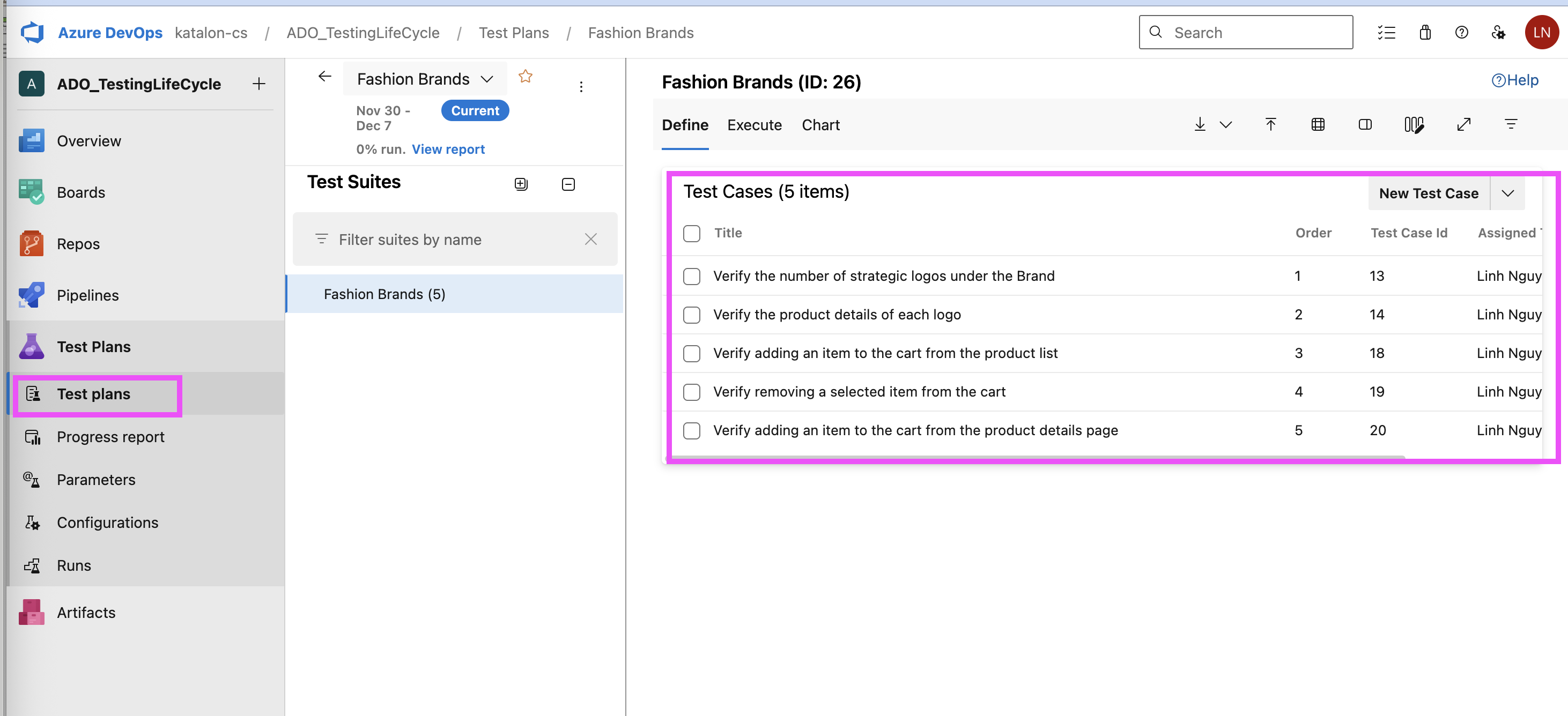

Test Plans:

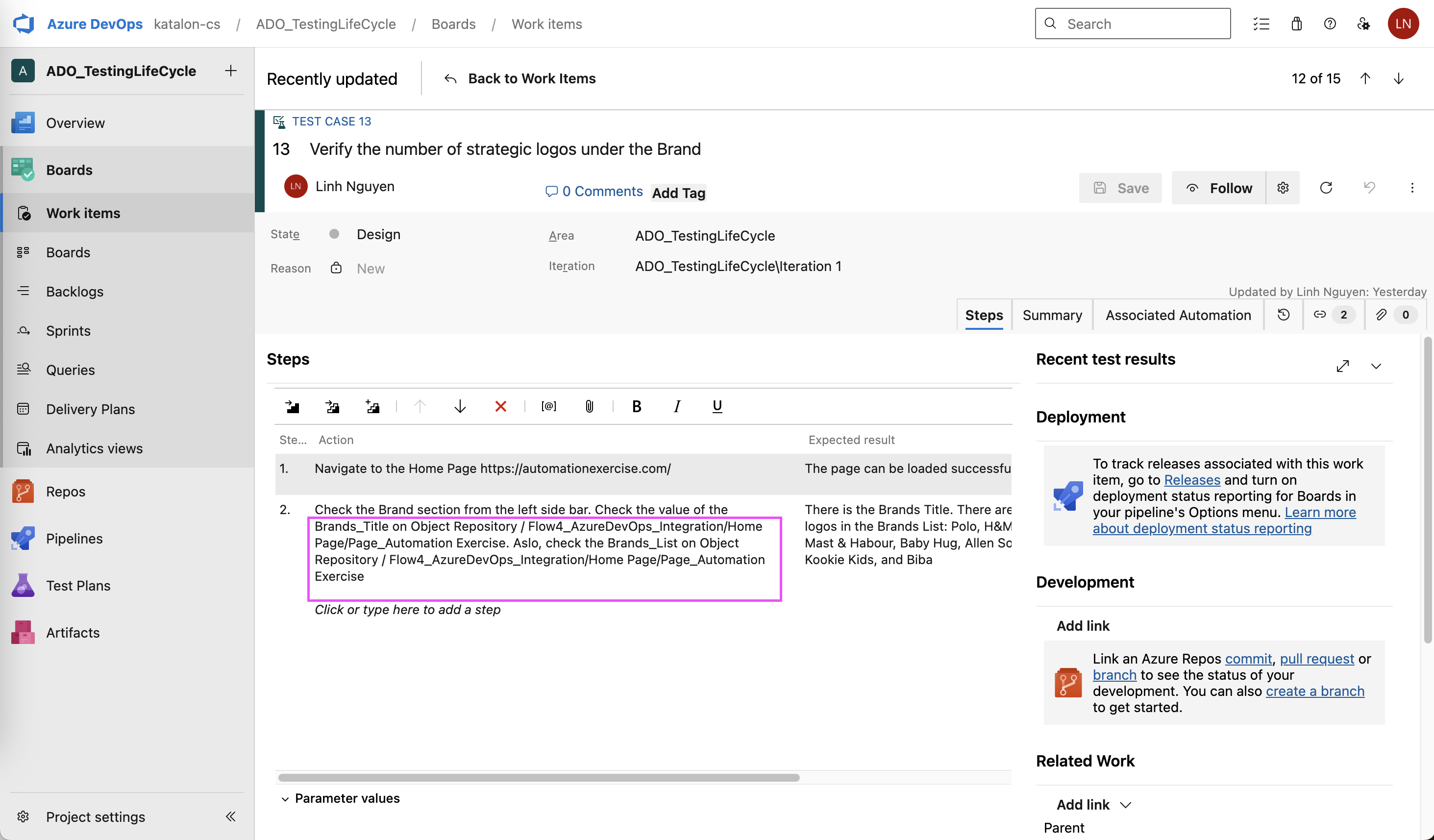

Include the names and locations of captured objects in the test steps of ADO Test Cases

E.g: Check the Brand section from the left side bar. Check the value of the Brands_Title on Object Repository / Flow4_AzureDevOps_Integration/Home Page/Page_Automation Exercise. Aslo, check the Brands_List on Object Repository / Flow4_AzureDevOps_Integration/Home Page/Page_Automation Exercise

Azure DevOps MCP Server

Install python

https://www.python.org/downloads/

Install mcp-proxy

There are 3 ways to install mcp-proxy

Open Terminal / Command Prompt

Option 1: Using uv (recommended) uv tool:

install mcp-proxy

Option 2: OR using pipx:

pipx install mcp-proxy

Option 3: OR using npm:

npm install -g mcp-proxy @azure-devops/mcp

Generate ADO Personal Access Token

• Scopes: Select the permissions you need:

  • Work Items: Read & Write

  • Code: Read

  • Build: Read

  • Or select Full Access for all permissions

• Keep this token for later use

Set up the PAT

Windows (PowerShell):

$env:AZURE_DEVOPS_PAT = "your-pat-token-here"

Windows (CMD):

set AZURE_DEVOPS_PAT=your-pat-token-here

macOS/Linux:

export AZURE_DEVOPS_PAT="your-pat-token-here"

OR Permanent setup (macOS/Linux):
Add to your ~/.zshrc or ~/.bashrc:

echo 'export AZURE_DEVOPS_PAT="your-pat-token-here"' >> ~/.zshrc source ~/.zshrc

Run the MCP proxy server with your Azure DevOps organization:

mcp-proxy --port 3000 --host 127.0.0.1 --stateless --allow-origin '*' npx @azure-devops/mcp "<<ADO Project Name>>"

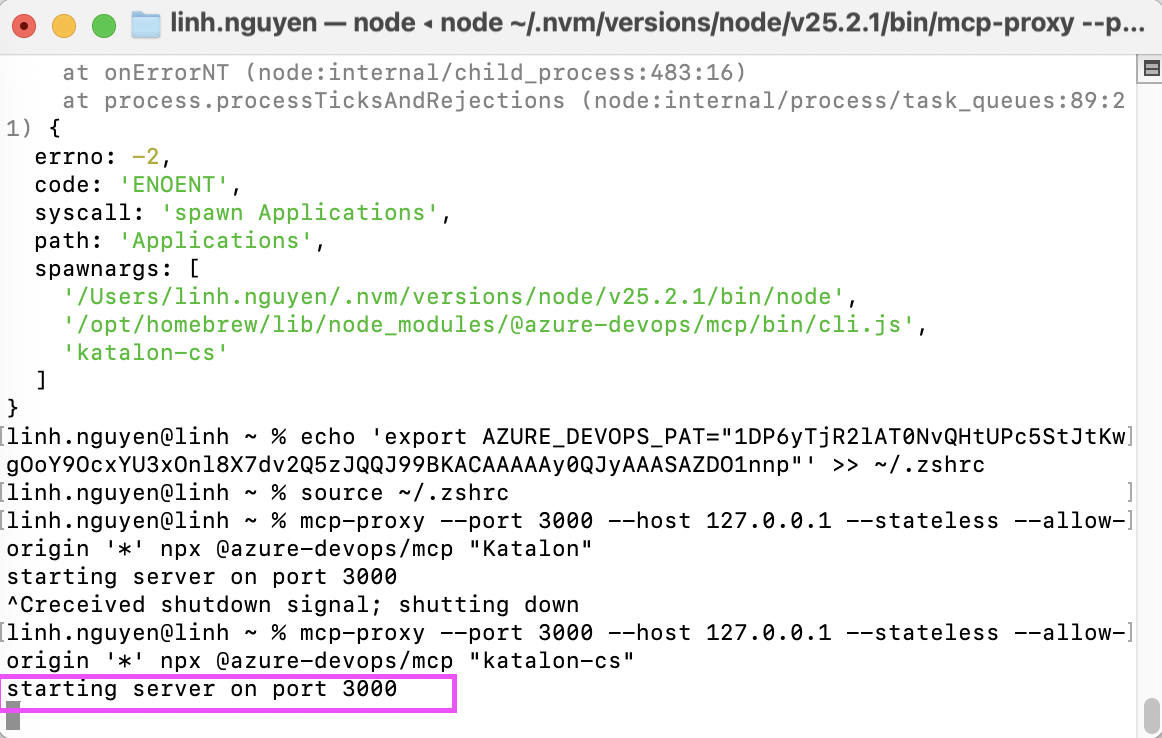

Result:

Best Practices Steps

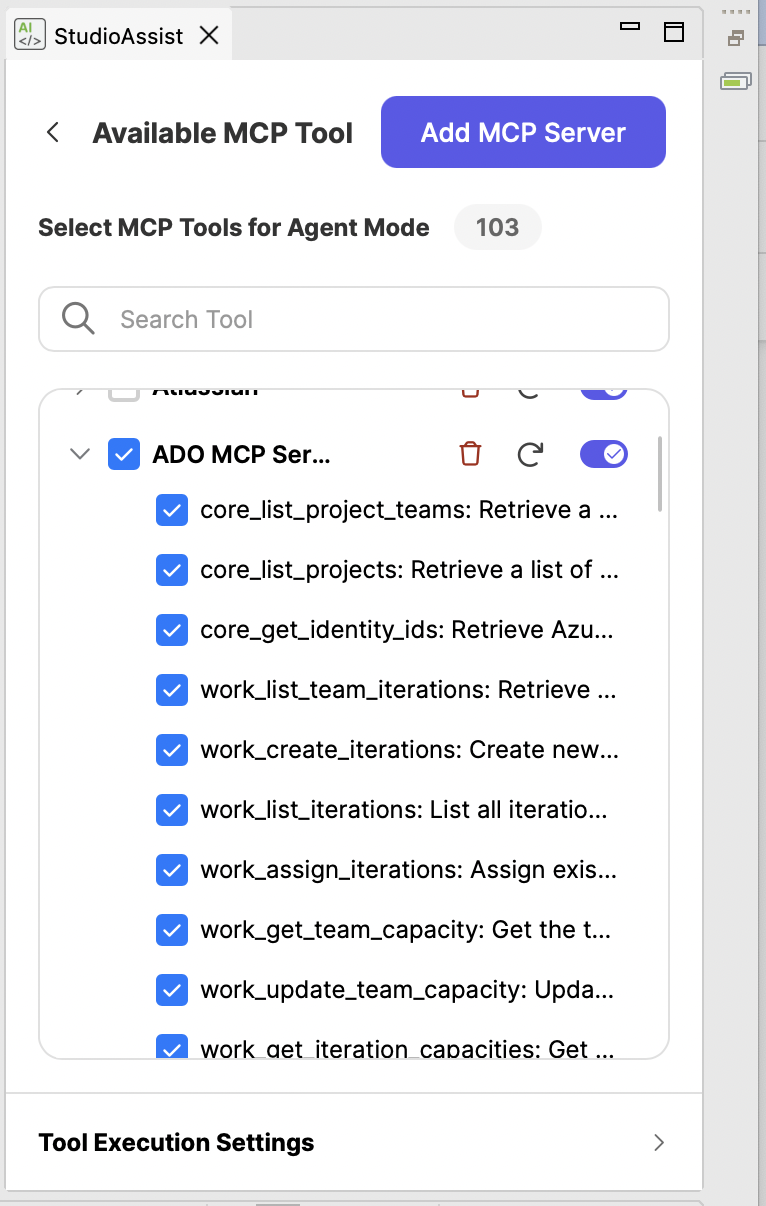

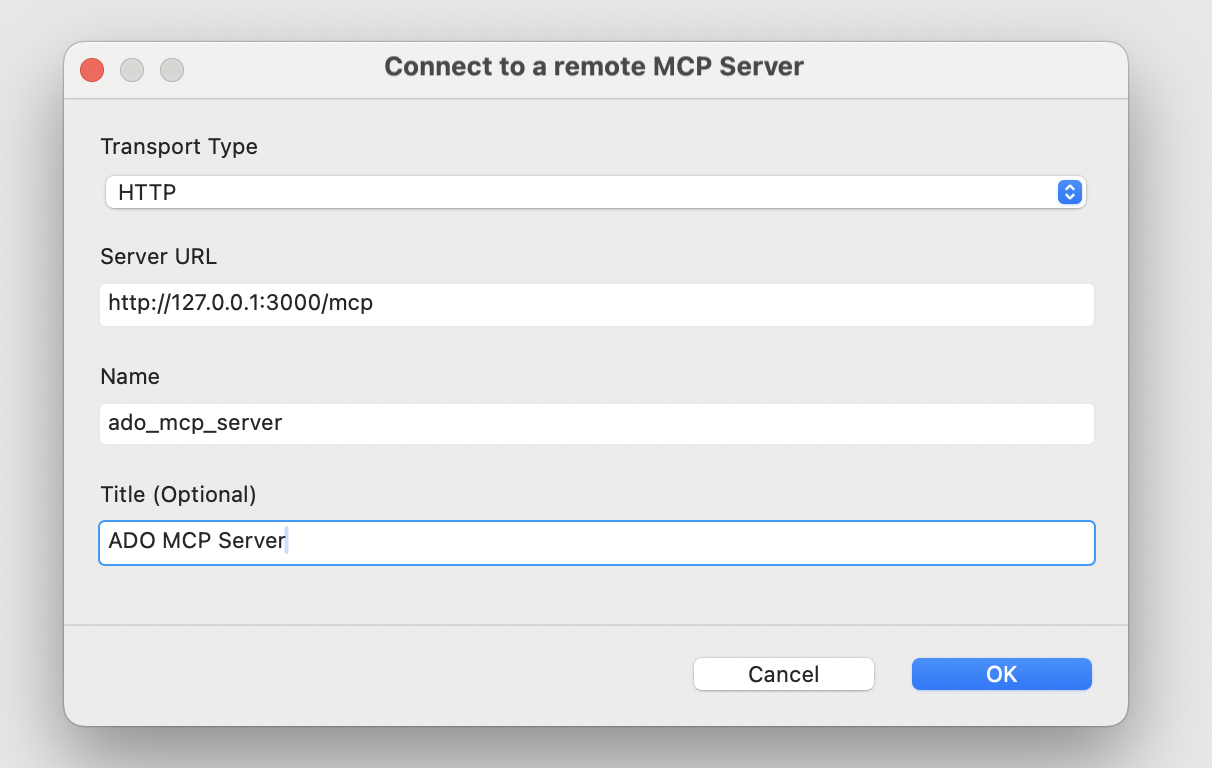

Step 1: Integrate ADO MCP Server in Katalon Studio

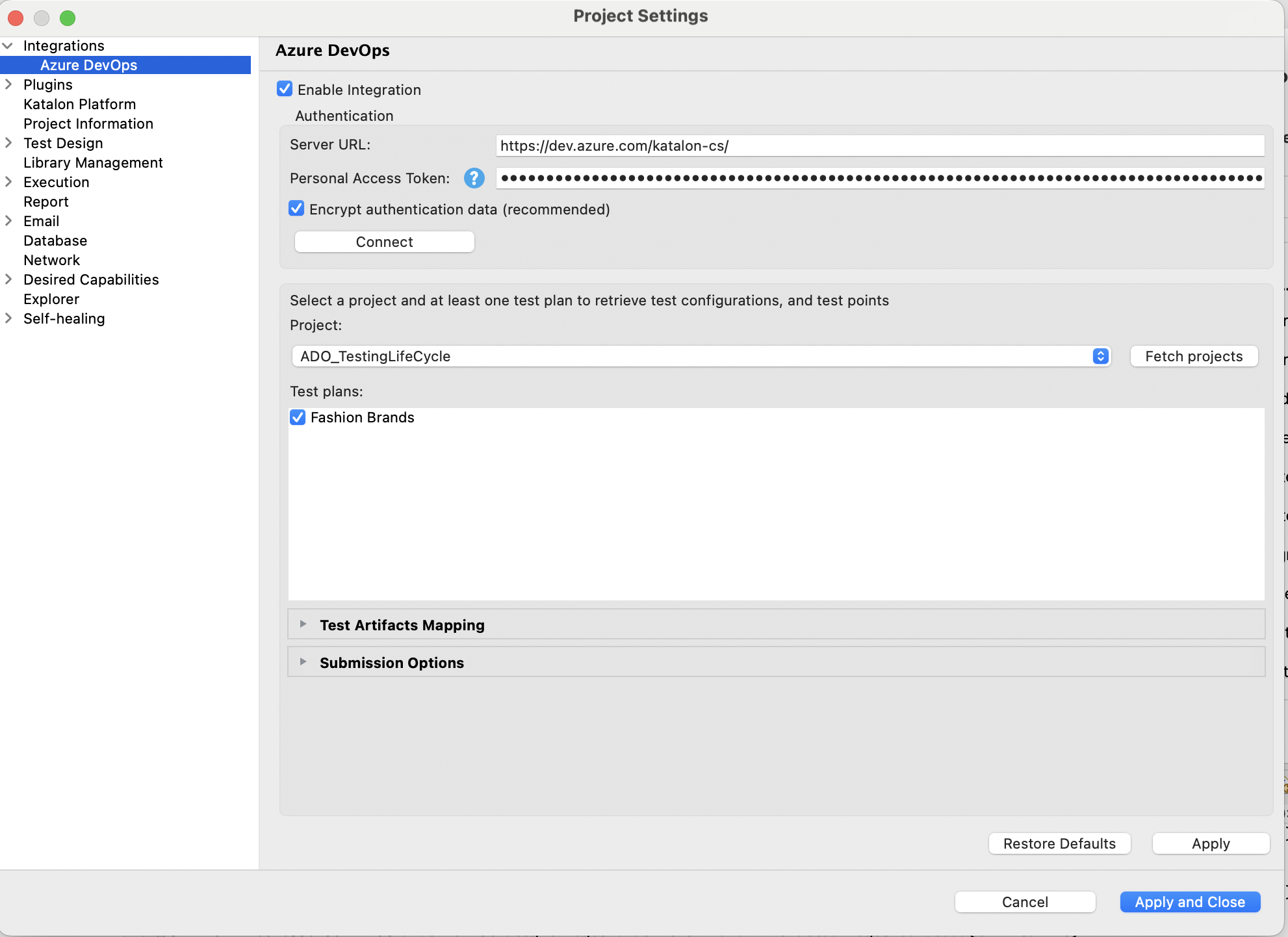

Step 2: Integrate ADO test plan to Katalon Studio

Project → Settings → Integrations → Azure DevOps

• Server URL: <<ADO Organization Link>>

• Personal Access Token: PAT_token

• Click “Connect“ to ensure that you can connect successfully

• Select the desired project and test plans

Step 3: Use StudioAssist to retrieve ADO test cases under the root test plan

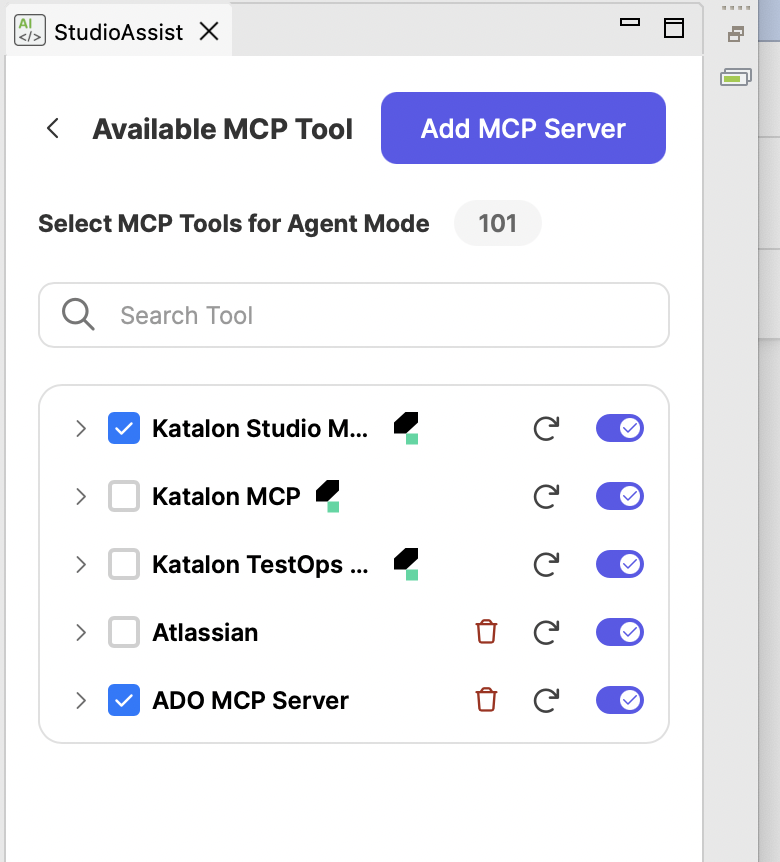

You should uncheck MCP Server under the following sources when retrieving data from Azure DevOps:

• Katalon

• Katalon Studio

• Katalon TestOps

This approach helps prevent retrieving incorrect or irrelevant data, especially in cases where prompts are not clearly defined or when similar terms appear across multiple sources

Prompts

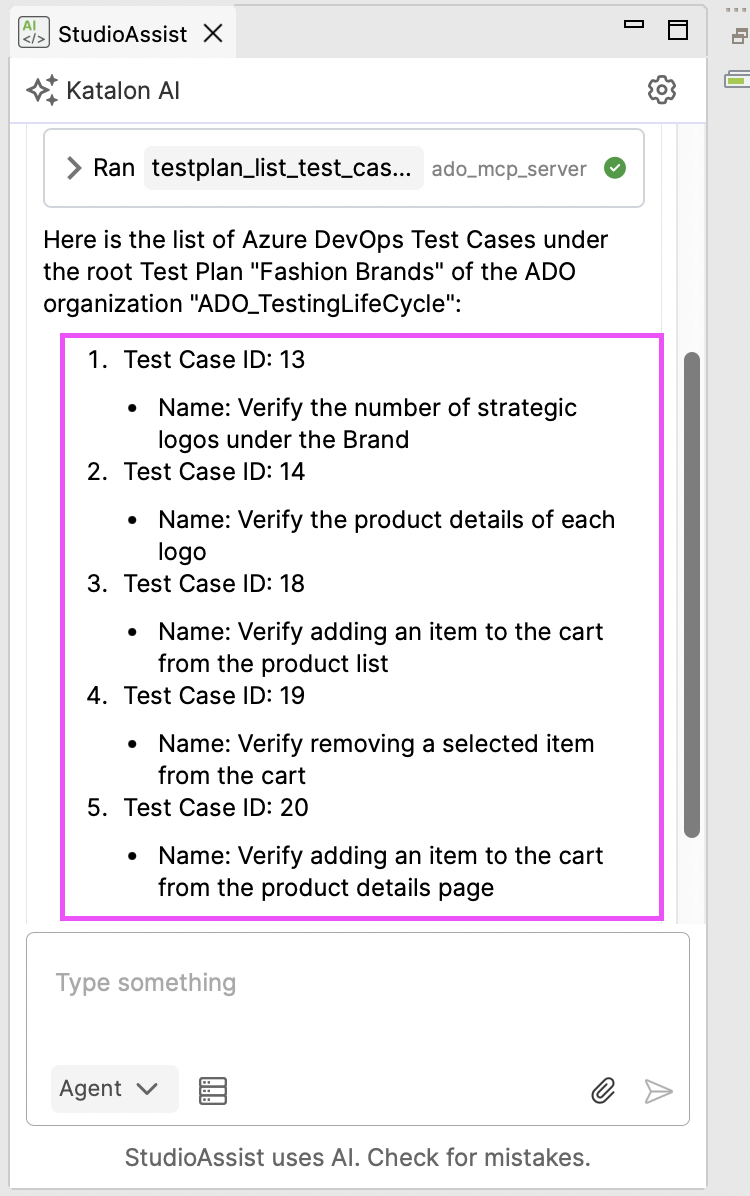

1. Retrieve the list of ADO test cases under the root Test Plan

Retrieve the list of ADO Test Cases under the root Test Plan of the ADO Organization named "<<your project name>>"

The ADO API treats the organization as the project. Therefore, when defining your query, you should use the keyword ‘organization’ instead of ‘project’ to ensure data is retrieved correctly.

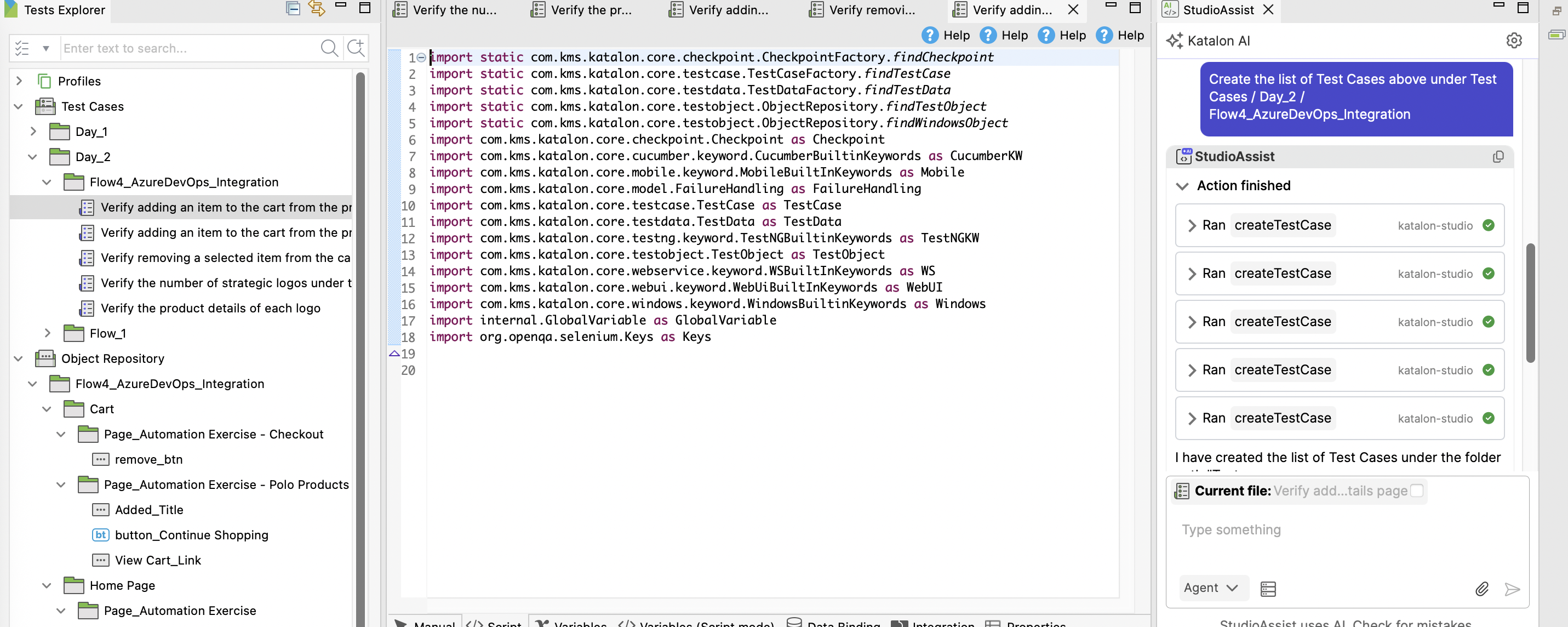

2. Create test cases automatically under the Test Cases folder of the Katalon Studio

Enable Katalon Studio MCP Server

Prompt:

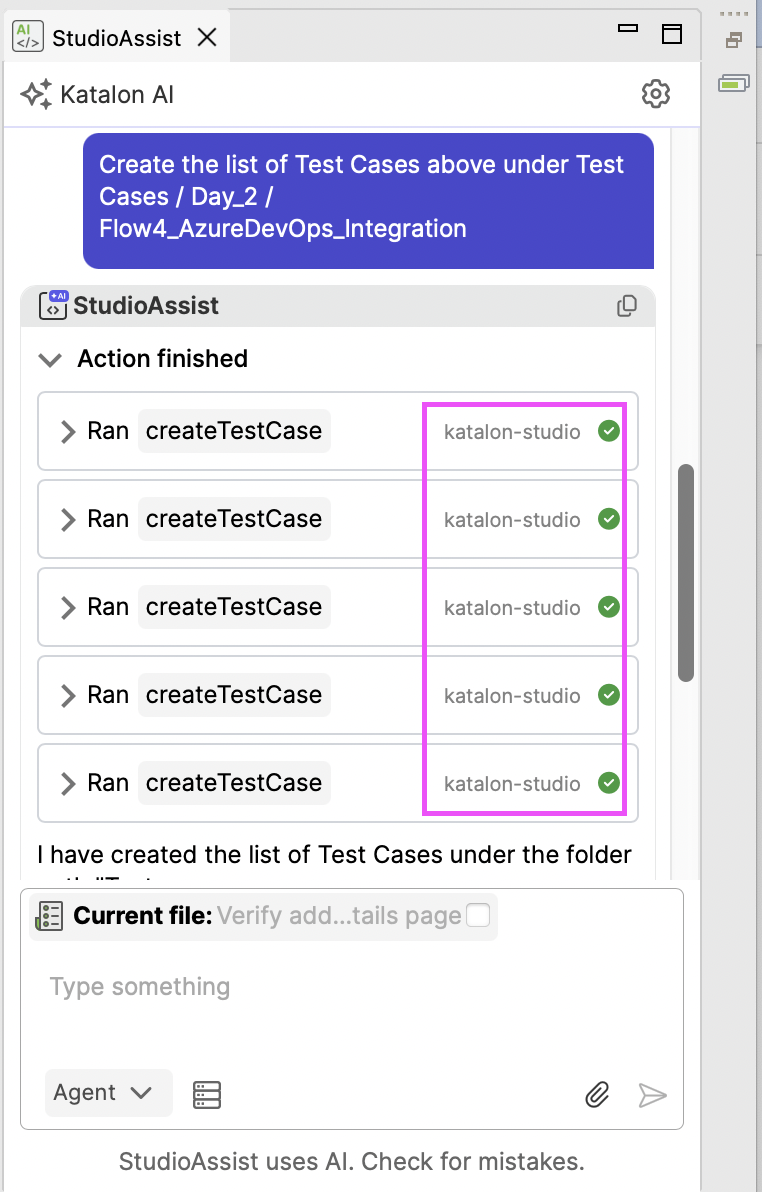

Create the list of Test Cases above under <<Test Cases folder or your desired colation>> of Katalon Studio

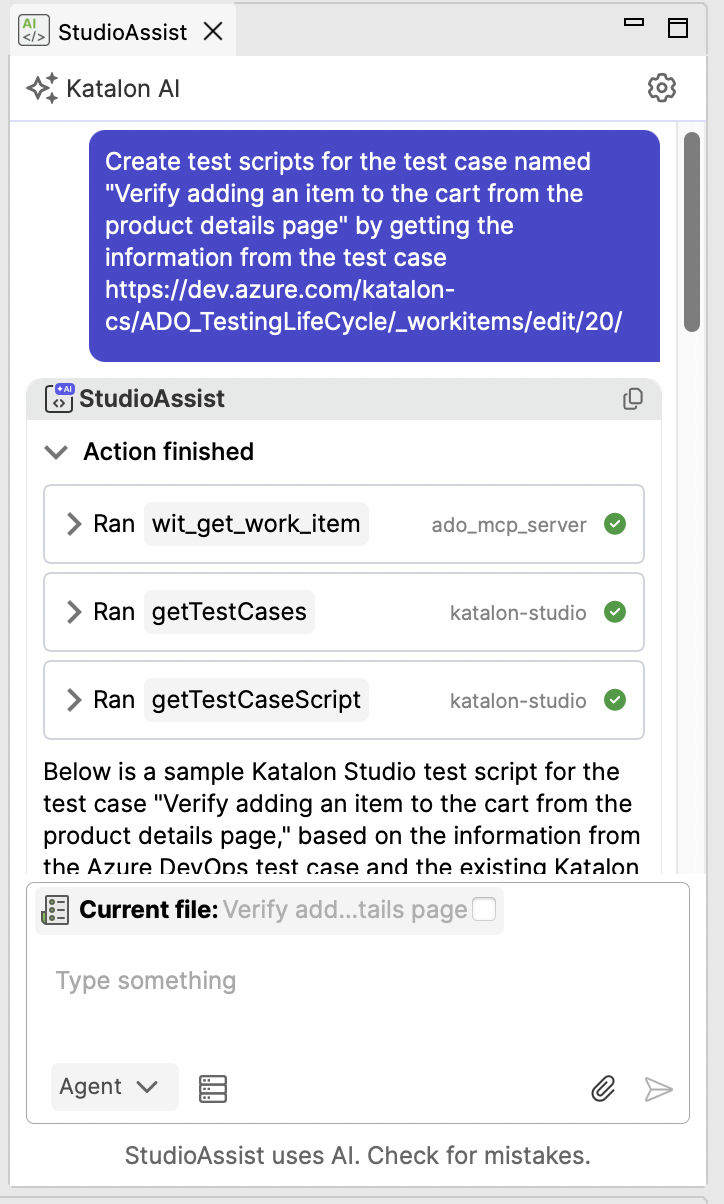

Step 4: Automatically generate scripts for a specific test case

Create test scripts

E.g: Create test scripts for the test case named "Verify adding an item to the cart from the product details page" by getting the information from the test case https://dev.azure.com/katalon-cs/ADO_TestingLifeCycle/_workitems/edit/20/

Prompts

Create test scripts for the test case named "Verify adding an item to the cart from the product details page" by getting the information from the test case <<Link ADO Test Case with specific id>>

Update the specific test case with the generated test scripts.

E.g: Update the test case named "Verify adding an item to the cart from the product details page" under the Test Cases / Day_2/Flow4_AzureDevOps_Integration with the provided scripts above

Update the test case named "<<name of your desired test case>>" under the <<location of your test case in the Katalon Studio>> with the provided scripts above

tip

• AI often suggests more than what we actually have, so you need to review the scripts to ensure they are appropriate and adjust them as needed.

Conclusion

The conclusion reinforces that applying the Azure DevOps MCP Bridge Best Practices facilitates the automated transition from Requirements to Test Scripts. This is achieved by leveraging StudioAssist to generate high-quality, maintainable Test Scripts based on the Test Objects explicitly defined within the ADO Test Cases
