Playwright Integration

Use @katalon/playwright-reporter to generate Playwright test result files and upload them to your Katalon True Platform project.

Prerequisites

Node.js version 18 or later.
@playwright/test version 1.0.0 or later.
A Katalon API key if you want to upload results. If you have not set one up yet, follow this guide to generate your API key.
Access to the Katalon True Platform project that will receive the uploaded results.
Your Katalon project ID. You can find it in the URL after /project/.

Upload Playwright test reports to Katalon True Platform

Install dependencies: Open your Playwright project and run one of the following commands:

npm install --save-dev @katalon/playwright-reporter

pnpm add -D @katalon/playwright-reporter

Configure Playwright: Open playwright.config.ts, then add the reporter and the global setup helper:

import { defineConfig } from '@playwright/test';
import { getGlobalSetupPath } from '@katalon/playwright-reporter';

export default defineConfig({
  globalSetup: getGlobalSetupPath(),
  reporter: [
    ['list'],
    [
      '@katalon/playwright-reporter',
      {
        outputDir: './reports',
        ...(process.env.KATALON_API_KEY && {
          platform: {
            apiKey: process.env.KATALON_API_KEY,
            projectId: process.env.KATALON_PROJECT_ID,
            baseUrl: process.env.KATALON_BASE_URL,
            executionUuid: process.env.KATALON_EXECUTION_UUID,
            authUrl: process.env.KATALON_AUTH_URL,
          },
        }),
      },
    ],
  ],
});

Run tests: Run the following command:
```
npx playwright test
```
Playwright runs your tests and the reporter stores Katalon logs in ./reports/.
Upload reports: Choose an uploading method:

Separate upload: Add a script to package.json, then run it after your test execution finishes:

{
  "scripts": {
    "upload": "playwright-reporter upload --output ./reports --api-key $KATALON_API_KEY --project-id $KATALON_PROJECT_ID"
  }
}

Full CLI options:

Option	Required	Description
`--output <path>`	Yes	Path to the reports directory.
`--api-key <key>`	Yes	Your Katalon API key.
`--project-id <id>`	Yes	The Katalon project ID that receives the results.
`--base-url <url>`	No	Platform base URL. Default: `https://testops.katalon.io`.
`--auth-url <url>`	No	Separate authentication URL. Default: `https://api.katalon.com`.
`--execution-uuid <uuid>`	No	Associates the uploaded results with an existing execution.

Upload during test execution: Specify KATALON_API_KEY and other environment variables before you run - Reports are automatically uploaded, no separate uploading required.
```
KATALON_API_KEY=your-key \
KATALON_PROJECT_ID=your-project-id \
KATALON_BASE_URL=https://qagen3platform.qa.katalon.com/ \
npx playwright test
```

Environment variables

Variable	Required	Default	Description
`KATALON_API_KEY`	For upload	—	Your Katalon API key.
`KATALON_PROJECT_ID`	For upload	—	The target Katalon project ID.
`KATALON_BASE_URL`	For upload	`https://testops.katalon.io`	The Katalon True Platform base URL.
`KATALON_AUTH_URL`	No	`https://api.katalon.com`	Overrides the authentication endpoint.
`KATALON_EXECUTION_UUID`	No	Auto-generated	Groups results under an existing execution.

Result

Playwright test results are sent to Katalon True Platform, including:

Test name, file path, status, and duration.
Screenshots, videos, and trace files as attachments.
Browser and project metadata, such as Chromium, Firefox, and WebKit.
Error messages and stack traces.

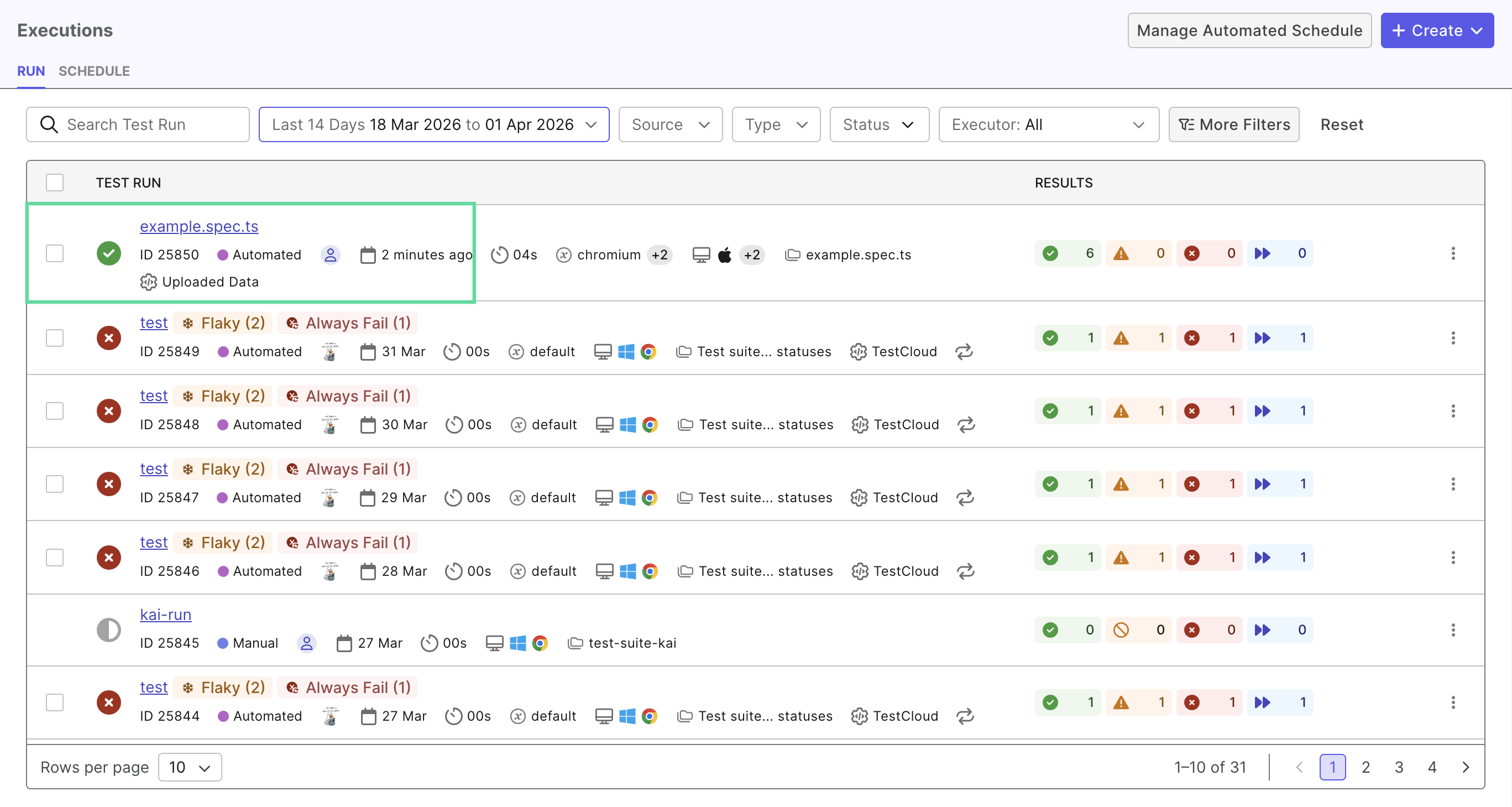

Once the upload finishes successfully, navigate to Test Runs to view your Playwright runs alongside Katalon Studio runs.

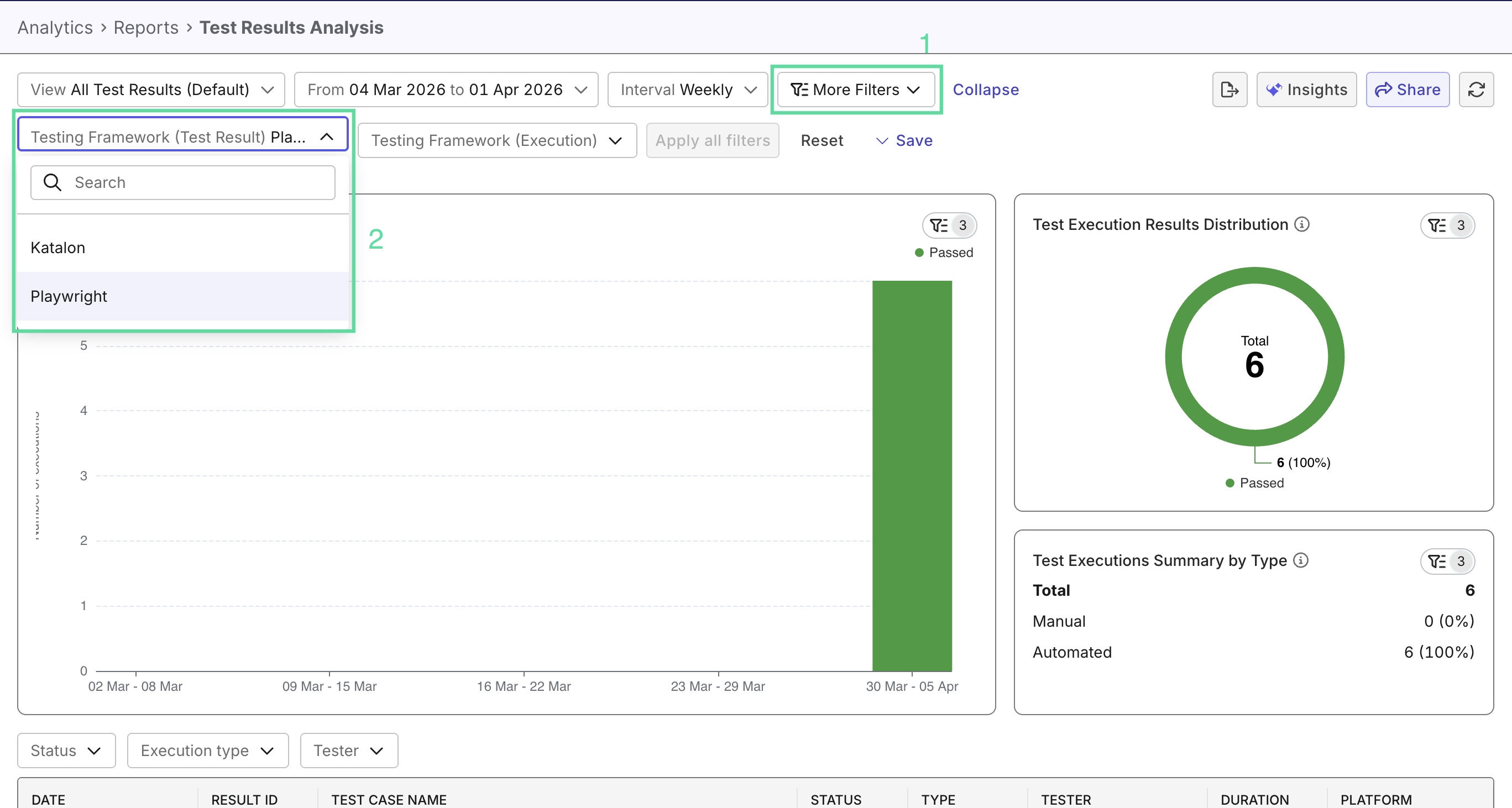

Playwright tests can then be viewed separately in any report, using filters by Testing Framework.
